POWER WINDOW MAIN SWITCH INSPECTION
id091200802000
Driver’s Side
1. Measure the voltage at each terminal (other than terminal 1H and 2C).
2. Disconnect the negative battery cable.
3. Inspect the power window main switch connector for continuity at terminal 1H and 2C.
4. If the system does not work properly even though the inspection items or related wiring harnesses do not have any malfunction, replace the power window main switch.
absggw00001724
|
|
Terminal |
Signal |
Connected to |
Test condition |
Voltage (V)/Continuity |
Action |
|---|---|---|---|---|---|
|
1A
|
Close output
|
Power window motor
|
While door glass is opening
|
Below 1.0
|
• Power window motor
• Inspect related harness
|
|
While door glass is closing
|
B+
|
||||
|
1B
|
Close output
|
Power window motor
|
While door glass is opening
|
Below 1.0
|
• Power window motor
• Inspect related harness
|
|
While door glass is closing
|
B+
|
||||
|
1C
|
Open output
|
Power window motor
|
While door glass is opening
|
B+
|
• Power window motor
• Inspect related harness
|
|
While door glass is closing
|
Below 1.0
|
||||
|
1D
|
Open output
|
Power window motor
|
While door glass is opening
|
B+
|
• Power window motor
• Inspect related harness
|
|
While door glass is closing
|
Below 1.0
|
||||
|
1F
|
IG1
|
P. WIND 30 A fuse
|
Ignition (F2,G6)/engine (WE-C, WL-3, WL-C, WLT-1, WLT-2) switch is at ON position
|
B+
|
• Inspect P. WIND 30 A fuse
• Inspect related harness
|
|
Ignition (F2,G6)/engine (WE-C, WL-3, WL-C, WLT-1, WLT-2) switch is at LOCK position
|
Below 1.0
|
||||
|
1H
|
Ground
|
GND
|
Under any condition: inspect for continuity to ground
|
Yes
|
• Inspect GND
|
|
1I
|
Power supply
|
P. WIND 30 A fuse
|
Under any condition
|
B+
|
• P. WIND 30 A fuse
• Inspect related harness
|
|
1J
|
Close output
|
Power window motor
|
While door glass is opening
|
Below 1.0
|
• Power window motor
• Inspect related harness
|
|
While door glass is closing
|
B+
|
||||
|
1K
|
Open output
|
Power window motor
|
While door glass is opening
|
B+
|
• Power window motor
• Inspect related harness
|
|
While door glass is closing
|
Below 1.0
|
||||
|
1L
|
Open output
|
Power window motor
|
While door glass is opening
|
B+
|
• Power window motor
• Inspect related harness
|
|
While door glass is closing
|
Below 1.0
|
||||
|
1M
|
Close output
|
Power window motor
|
While door glass is opening
|
Below 1.0
|
• Power window motor
• Inspect related harness
|
|
While door glass is closing
|
B+
|
||||
|
1N
|
Door switch
|
Door switch
|
Any door is open (door switch is on): inspect for continuity to ground
|
Yes
|
• Inspect door switch
• Inspect related harness
|
|
All doors are closed (door switch is off): inspect for continuity to ground
|
No
|
||||
|
2A
|
Power supply
|
Power window motor
|
Under any condition
|
9
|
• Power window motor
• Inspect related harness
|
|
2B
|
SEN 2
|
Power window motor
|
Door glass is in motion
|
Alternates between 0 and 9
|
• Power window motor
• Inspect related harness
|
|
2C
|
Ground
|
Power window motor
|
Under any condition: inspect for continuity to ground
|
Yes
|
• Power window motor
• Inspect related harness
|
|
2D
|
SEN 1
|
Power window motor
|
Door glass is in motion
|
Alternates between 0 and 9
|
• Power window motor
• Inspect related harness
|
|
Door glass is not in motion
|
0 or 9
|

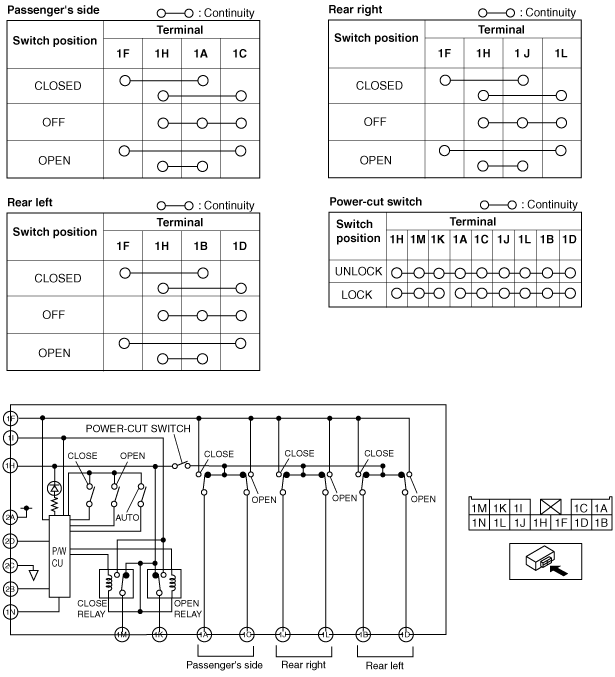

Except Driver"s Side
1. When inspecting the passenger-side and rear power windows, turn the power-cut switch to UNLOCK.
2. Inspect for continuity between the power window main switch terminals.
3. Connect battery positive voltage to terminal 1B and ground to terminal 1M. Verify that there is continuity.
