POWER OUTER MIRROR INSPECTION
id091200803000

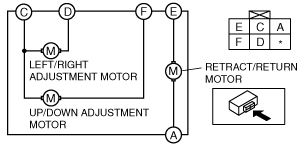

1. Apply battery positive voltage to the power outer mirror terminals and inspect the operation of the power outer mirror.
dcf912zwb076
|
|
Mirror operation |
terminal |
|
|---|---|---|
|
B+ |
GND |
|
|
Up
|
F
|
C
|
|
Down
|
C
|
F
|
|
Left
|
D
|
C
|
|
Return
|
A
|
E
|
|
Retract
|
E
|
A
|
