REAR SEAT REMOVAL/INSTALLATION

id091300800400

DOUBLE CAB

1.  To remove the hinge, remove the C-pillar trim. (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

2.  Remove in the order indicated in the table.

absggw00001153

1	Rear seat cushion
2	Rear seat back
3	Striker
4	Hinge

3.  Install in the reverse order of removal.

FREESTYLE CAB

1.  Remove the back upper trim.

absggw00001154

2.  Remove the bolts.

3.  Remove the seat back.

4.  Install in the reverse order of removal.

5.  Remove the back lower trim.

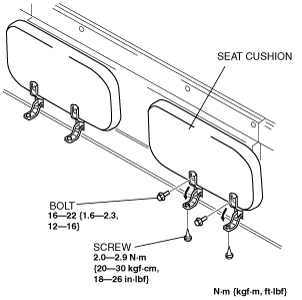

absggw00001155

6.  Lift up the rear seat cushion.

7.  Remove the screws.

8.  Remove the bolts, and then remove the seat cushion.

9.  Remove the fasteners and then turn over the floor covering.

10.  Remove the bolts then, remove the hinge.

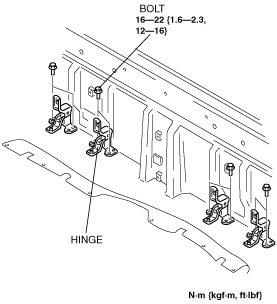

absggw00001156

11.  Install in the reverse order of removal.
