REAR SEAT DISASSEMBLY/ASSEMBLY
id091300800500

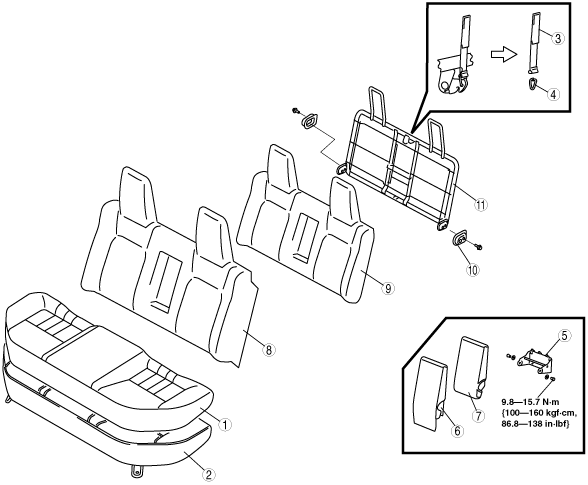

DOUBLE CAB
1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.
absggw00001157
|
|
1
|
Seat back frame
|
|
2
|
Seat cushion trim
|
|
3
|
Band
|
|
4
|
Connect wire
|
|
5
|
Armrest hinge
|
|
6
|
Armrest trim
|
|
7
|
Armrest pad
|
|
8
|
Seat back trim
|
|
9
|
Seat back pad
|
|
10
|
Side cover
|
|
11
|
Seat back frame
|
FREESTYLE CAB
1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.
absggw00001158
|
|
1
|
Seat cushion trim
|
|
2
|
Seat cushion pad
|
