SEAT REMOVAL/INSTALLATION

id091300804100

Warning

•  Handling the seat (with a side air bag) improperly can accidentally deploy the side air bag, which may seriously injure you. Read AIR BAG SYSTEM SERVICE WARNINGS before handling the seat (with a side air bag). (See SERVICE WARNINGS.)(See SERVICE CAUTIONS.)

Bench Seat

1.  Remove in the order indicated in the table.

absggw00001728

1	Bolt
2	Seat

2.  Install in the reverse order of removal.

Separate Seat

1.  Turn the ignition (F2, G6)/engine (WE-C, WL-3, WL-C, WLT-1, WLT-2) switch to the LOCK position. (vehicle with side air bag)

2.  Disconnect the negative battery cable and wait for more than 1 minute.(vehicle with side air bag)

3.  Remove in the order indicated in the table.

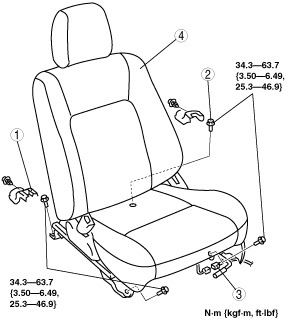

absggw00001729

1	Cover
2	Bolt
3	Connector
4	Seat

4.  Install in the reverse order of removal.
