SEAT DISASSEMBLY/ASSEMBLY
id091300804200
1. Disconnect the negative battery cable and wait for more than 1 minute.
2. Remove the side air bag module. (See SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)
3. Disassemble in the order indicated in the table.
4. Assemble in the reverse order of disassembly.

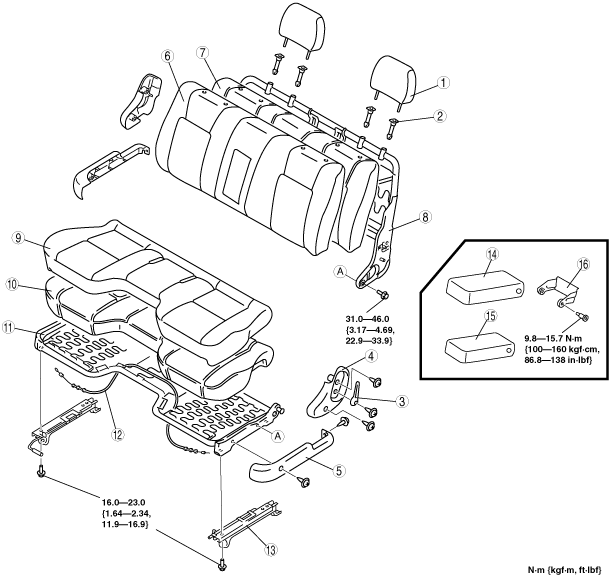

Bench Seat
absggw00001160
|
|
1
|
Headrest
|
|
2
|
Pole guide
|
|
3
|
Recliner lever
|
|
4
|
Side cover
|
|
5
|
Lower cover
|
|
6
|
Seat back trim
|
|
7
|
Seat back pad
|
|
8
|
Seat back frame
|
|
9
|
Seat cushion trim
|
|
10
|
Seat cushion pad
|
|
11
|
Seat cushion frame
|
|
12
|
Cable
|
|
13
|
Slide adjuster
|
|
14
|
Connecting rod
|
|
15
|
Armrest trim
|
|
16
|
Armrest pad
|
|
17
|
Armrest hinge
|

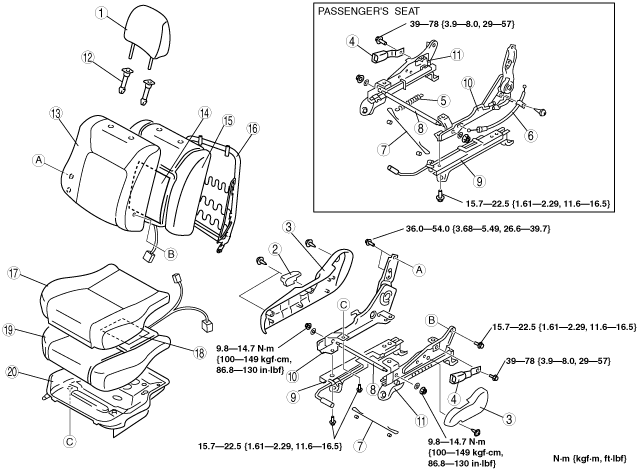

Separate Seat
absggw00001161
|
|
1
|
Headrest
|
|
2
|
Recliner lever
|
|
3
|
Side cover
|
|
4
|
Front buckle
|
|
5
|
Spring (stretch cab)
|
|
6
|
Cable (stretch cab)
|
|
7
|
Wire
|
|
8
|
Connecting rod
|
|
9
|
Slide adjuster No.1
|
|
10
|
Slide adjuster No.2
|
|
11
|
Slide adjuster No.3
|
|
12
|
Pole guide
|
|
13
|
Seat back trim
|
|
14
|
Seat back warmer unit
|
|
15
|
Seat back pad
|
|
16
|
Seat back frame
|
|
17
|
Seat cushion trim
|
|
18
|
Seat cushion warmer unit
|
|
19
|
Seat cushion pad
|
|
20
|
Seat cushion frame
|
