IMMOBILIZER SYSTEM OPERATION
id091400102000
WE-C, WL-3, WL-C

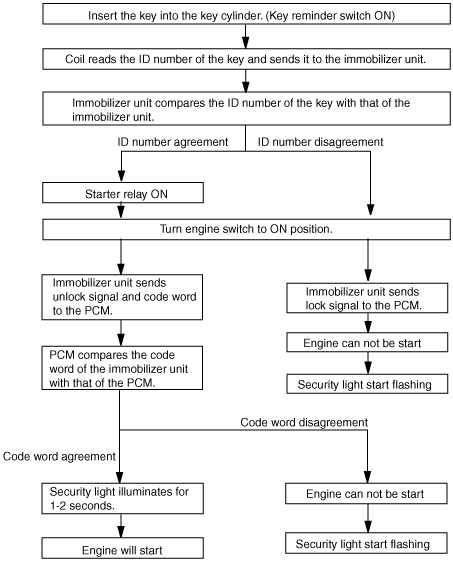

• This is a conceptual flow chart for understanding how the immobilizer system operates. It shows how the system decides whether or not to start the vehicle when the engine switch is turned to ON position.
WLT-2
• This is a conceptual flow chart for understanding how the immobilizer system operates. It shows how the system decides whether or not to start the vehicle when the engine switch is turned to ON position.
