REAR DOOR LATCH AND LOCK ACTUATOR INSPECTION

id091400800700

1.  The following actuators and switches are integrated with the rear door latch and lock actuator. Inspect the rear door latch and lock actuator according to each inspection procedure for the following items.

•  Rear door lock actuator

•  Door lock-link switch

ecf914zw3a06

Rear Door Lock Actuator Inspection

1.  Disconnect the rear door lock actuator connector.

2.  Apply battery positive voltage to the rear door lock actuator terminals and inspect the operation of the rear door lock actuator.

dcf914zwc010

•  If not as specified, replace the rear door lock actuator.

Actuator operation	Connection
	B+	GND
Lock	1B	1A
Unlock	1A	1B

Door Lock-link Switch Inspection

1.  Disconnect the rear door lock actuator connector.

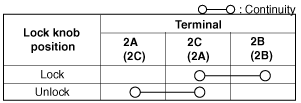

2.  Inspect for continuity between the door lock-link switch terminals.

dcf914zwc011

•  If not as specified, replace the front door lock actuator.

dcf914zwc012
