REAR ACCESS PANEL STRIKER REMOVAL/INSTALLATION

id091400820100

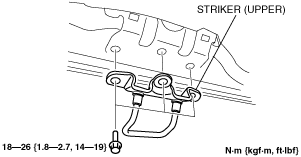

Upper Striker

1.  Remove the bolts.

2.  Remove the upper lock striker.

abr7714w002

3.  Install in the reverse order of removal.

Lower Striker

1.  Remove the screw.

2.  Remove the lower striker.

abr7714w003

3.  Install in the reverse order of removal.
