CODE WORD INPUT PROCEDURE
id091400820500
WE-C, WL-3, WL-C
-
Note
-
• A code word is composed of eight digits from 1—9 and is part of the immobilizer unit from the manufacturer. Each unit has its own code word. To obtain the code word, you need to have the immobilizer serial number, then ask the distributor.
• To input the code word into the PCM, turn the engine key and count the number of flashes of the security light. The calculation of the number of flashes of the security light comes with the timing of the turning of the key.
1. Wait for 5 minutes until security light flashes slowly. (300 ms ON—300 ms OFF →1.2 s ON—1.2 s OFF)

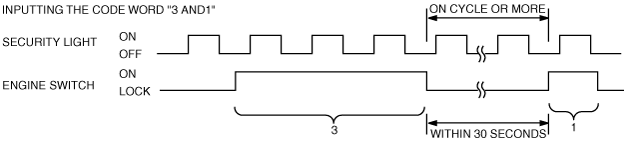

2. Input the code word as shown in the example below.
- (1) Turn engine switch to ON position while security light is off and count three illumination cycles. As the light goes out after the third illumination, turn key to LOCK position.
- (2) Wait at least one illumination cycle and within 30 seconds of going to LOCK position, turn engine switch to ON position while security light is off and count one illumination cycle. As the light goes out after the first illumination, turn key to LOCK position.
- (3) Repeat Step (2) for rest of six digits.
3. When code word is registered correctly in the PCM, the security light stops flashing and illuminates.
4. As soon as the security light stops flashing and illuminates, the following immobilizer system reprogram procedure should be started.
-
Note
-
• If the code word is not input correctly, the security light goes out after all eight digits are input. In this case, perform the “Code Word Input Error Recovery Procedure.”
Examples of incorrect input of code word
-
Note
-
• The security light must flash one or more times between the digits of the code word.
• If the code word is input incorrectly, the security light goes out. Remove and insert key five times and repeat the procedure to input all eight figures for the code word.
• When an error occurs during the reprogram procedures except when both the immobilizer unit and PCM are replaced, repeat the procedure from Step 1. If you still cannot reprogram, confirm how many keys can start the engine. Then, perform the key replacement or addition reprogram procedure according to the valid key number.
-
• The security light flashes ten or more times while the engine switch is at ON position.
-
• The engine switch is turned to ON position and LOCK position while the security light is off.
-
• The engine switch is turned to LOCK position and ON position while the security light is on.
-
• The engine switch is turned to LOCK position and ON position while the security light is off.
-
• An unmatched code word is input to the immobilizer unit.
Code Word Input Error Recovery Procedure
1. Remove and insert key five times at no more than 1-second intervals.
2. Repeat the “CODE WORD INPUT PROCEDURE.”
WLT-2
-
Note
-
• A code word is composed of five digits from 0—9 and is part of the immobilizer unit from the manufacturer. Each unit has its own code word. To obtain the code word, you need to have the immobilizer serial number, then ask the distributor.
• To input the code word into the DDS1, turn the engine key and count the number of flashes of the security light. The calculation of the number of flashes of the security light comes with the timing of the turning of the key.
1. Wait for 5 minutes until security light flashes slowly. (300 ms ON—300 ms OFF →1.2 s ON—1.2 s OFF)
2. Input the code word as shown in the example below.
- (1) Turn engine switch to ON position while security light is off and count three illumination cycles. As the light goes out after the third illumination, turn key to LOCK position.
- (2) Wait at least one illumination cycle and within 30 seconds of turning key to LOCK position, turn engine switch to ON position while security light is off and count one illumination cycle. As the light goes out after the first illumination, turn key to LOCK position.
- (3) Repeat Step (2) for rest of three digits.
-
-
Note
-
• To input the code word “0”, turn the engine switch to ON position while the security light is off and count ten illumination cycles. As the light goes out after the tenth illumination, turn key to LOCK position.
3. When code word is registered correctly in the DDS1, the security light stops flashing and illuminates.
4. As soon as the security light stops flashing and illuminates, the following immobilizer system reprogram procedure should be started.
-
Note
-
• If the code word is not input correctly, the security light goes out after all five digits are input. In this case, perform the “Code Word Input Error Recovery Procedure.”
Examples of incorrect input of code word
-
Note
-
• The security light must flash one or more times between the digits of the code word.
• If the code word is input incorrectly, the security light goes out. Turn the engine switch to ON position then back to LOCK position five times and repeat the procedure to input all five figures for the code word.
• When an error occurs during the reprogram procedures except when both the immobilizer unit and DDS1 are replaced, repeat the procedure from Step 1. If you still cannot reprogram, confirm how many keys can start the engine. Then, perform the key replacement or addition reprogram procedure according to the valid key number.
-
• The security light flashes eleven or more times while the engine switch is at ON position.
-
• The engine switch is turned to ON position and LOCK position while the security light is off.
-
• The engine switch is turned to LOCK position and ON position while the security light is on.
-
• The engine switch is turned to LOCK position and ON position while the security light is off.
-
• The unmatched code word is input to the immobilizer unit.
Code word input error recovery procedure
1. Turn engine switch to ON position then back to LOCK position five times. The key should not remain at ON position or LOCK position for more than 1 second.
2. Repeat the “CODE WORD INPUT PROCEDURE.”
