COWL GRILLE REMOVAL/INSTALLATION

id091600801000

1.  Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

2.  Remove the windshield garnish. (See WINDSHIELD GARNISH REMOVAL/INSTALLATION.)

3.  Remove the weatherstrip.

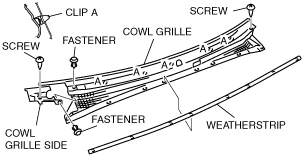

dcg916zwb000

4.  Remove the screw.

5.  Detach the fastener, then remove the cowl grill side.

6.  Pull the cowl grill upward and detach clips A.

7.  Remove the cowl grille.

8.  Install in the reverse order of removal.
