OVER FENDER REMOVAL/INSTALLATION

id091600820100

Front

1.  To remove the front over fender No. 1, remove the front bumper.

2.  Remove in the order indicated in the table.

3.  Install in the reverse order of removal.

dbg916zwb013

1	Screw A
2	Fastener
3	Front over fender No. 2
4	Nut
5	Washer
6	Screw B
7	Front over fender No. 1

Rear

1.  Remove in the order indicated in the table.

2.  Install in the reverse order of removal.

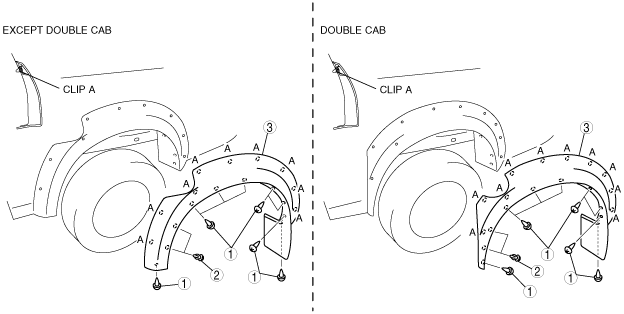

dbg916zwb020

1	Screw
2	Fastener
3	Rear over fender
