DASHBOARD DISASSEMBLY/ASSEMBLY

id091700800400

1.  Disassemble in the order indicated in the table.

2.  Assemble in the reverse order of disassembly.

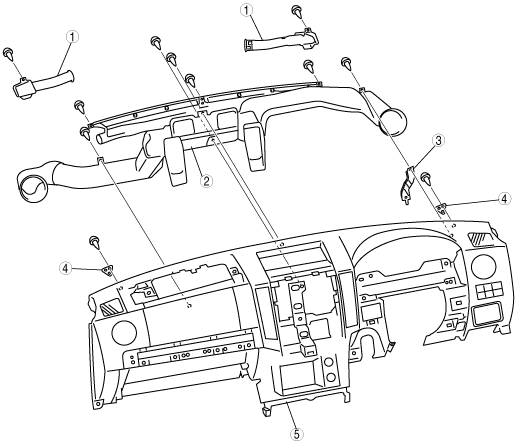

dcg917zwb001

1	Side demister nozzle
2	Center duct (See Center Duct Removal Note.)
3	Member bracket
4	Pin
5	Dashboard face

Center Duct Removal Note

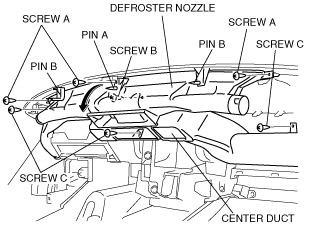

1.  Remove the defroster nozzle installation screws A.

dcg917zwb043

2.  Remove the defroster nozzle from pin A

3.  Partially open the defroster nozzle in the direction shown by the arrow while avoiding pins B, and remove the center duct installation screw B.

4.  Remove the center duct installation screws C.

5.  Remove the defroster and center ducts at the same time.
