CONSOLE REMOVAL/INSTALLATION

id091700801200

Regular Cab

1.  Remove the shift lever knob.

2.  Remove the screws and fasteners.

dcg917zwb012

3.  Remove console.

4.  Install in the reverse order of removal.

Double Cab, Freestyle Cab

1.  Remove the shift lever knob.

2.  Pull the boot panel upward and detach clips A.

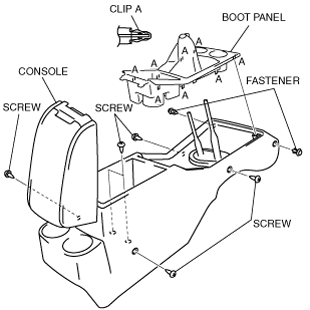

dcg917zwb003

3.  Remove the boot panel.

4.  Remove the screws and fasteners.

5.  Remove the console.

6.  Install in the reverse order of removal.
