CONSOLE REMOVAL/INSTALLATION [5R55S]

id0917008012j8

1.  Disconnect the negative battery cable.

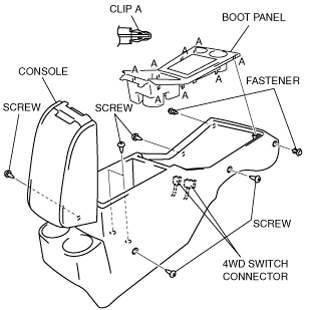

2.  Pull the boot panel upward and detach clips A.

3.  Disconnect the 4WD switch connector. (4WD only)

absggw00001979

4.  Remove the boot panel.

5.  Remove the screws and fasteners.

6.  Remove the console.

7.  Install in the reverse order of removal.
