CONSOLE DISASSEMBLY/ASSEMBLY

id091700801300

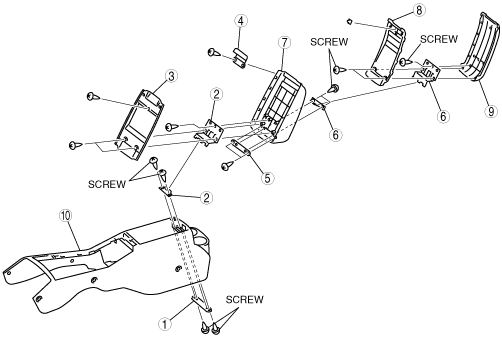

1. Disassemble in the order indicated in the table.

dcg917zwb004

1

Console bracket

2

Hinge No.1

3

Console lid inner No.1

4

Lock

5

Console bracket No.2

6

Hinge No.2

7

Upper panel

8

Console lid inner No.2

9

Console lid outer

10

Console

2. Assemble in the reverse order of disassembly.

1	Console bracket
2	Hinge No.1
3	Console lid inner No.1
4	Lock
5	Console bracket No.2
6	Hinge No.2
7	Upper panel
8	Console lid inner No.2
9	Console lid outer
10	Console
