BACK UPPER TRIM REMOVAL/INSTALLATION

id091700810400

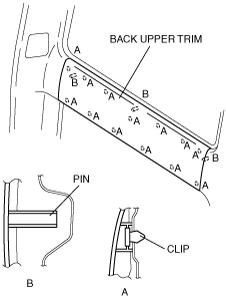

1.  Insert a flathead screwdriver or equivalent in the gap between the rear window weatherstrip and back upper trim, then pull the back upper trim to disengage clips A and pins B.

2.  Remove the back upper trim.

abr7744w005

3.  Install in the reverse order of removal.
