HEADLIGHT AIMING

id091800800400

1.  Adjust the tire pressure to the specification.

2.  Position the unloaded vehicle on a flat, level surface.

3.  Seat one person in the driver’s seat.

4.  Position the vehicle straight ahead and perpendicular to the white screen.

5.  Set the headlights 3 m {9.8 ft} from the white screen.

absggw00001167

6.  Place an object in front of the headlight not being adjusted to block its light beam.

7.  Start the engine so that the battery remains charged.

8.  Turn on the low-beam headlight.

9.  Set the headlight leveling switch to the 0 position. (Vehicles with headlight leveling system)

10.  Adjust the headlight by loosening the adjusting screw as shown in the figure.

absggw00001168

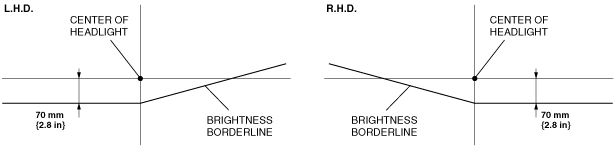

11.  Turn the adjusting screw and adjust the brightness borderline of the headlight to the position shown in the figure.
