INTERIOR LIGHT REMOVAL/INSTALLATION

id091800801500

1.  Disconnect the negative battery cable.

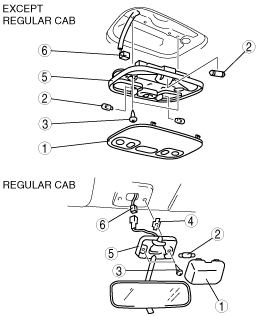

2.  Remove in the order indicated in the table.

dcf918zwb301

1	Lens (See Lens Removal Note.)
2	Interior light bulb
3	Screw
4	Spacer
5	Interior light (See Interior Light Installation Note.)

3.  Install in the reverse order of removal.

Lens Removal Note

Except regular cab

1.  Insert a tape-wrapped flathead screwdriver into the service hole and pry with the screwdriver in the direction shown by the arrow to remove the lens.

dbg918zwb106

Regular cab

1.  Push the areas indicated by the arrows to pull out the lens.

dcf918zwb201

Interior Light Installation Note

Regular cab

Note

•  The spacer acts as a ground. If the spacer is not indicated in the position shown in the figure, the interior light may not illuminate.

1.  Tighten screw fully. (More than 4 mm {0.2 in} of thread should be exposed.)

2.  Install the interior light.

dcf918zwb202
