WINDSHIELD WASHER HOSE REMOVAL/INSTALLATION

id091900802100

1.  Disconnect the windshield washer hose from the windshield washer nozzle and the windshield washer motor.

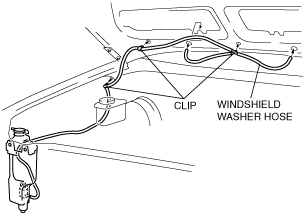

dbg919zwb102

2.  Remove the clips.

3.  Remove the windshield washer hose.

4.  Install in the reverse order of removal.
