CIGARETTE LIGHTER REMOVAL/INSTALLATION

id092000803100

1.  Disconnect the negative battery cable.

2.  Remove in the order indicated in the table.

dcf920zwb001

1	Cigarette lighter plug
2	Connector
3	Socket (See Socket Removal Note.)
4	Ring (See Ring Removal Note.)

3.  Install in the reverse order of removal.

Socket Removal Note

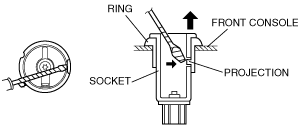

1.  While pressing a tape-wrapped flathead screwdriver against the ring projection, pull the socket outward.

dcf920zwb555

Ring Removal Note

1.  Pull the ring outward while pressing the tabs.
