ENGINE SWITCH INSPECTION

id092100802100

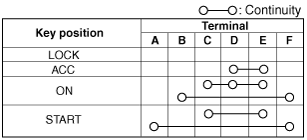

1.  Verify that the continuity between the engine switch terminals is as indicated in the table.

dcf921zwbo01

•  If not as indicated in the table, replace the engine switch.

dcf921zwbo02
