INSTRUMENT CLUSTER STRUCTURAL VIEW
id092200101200

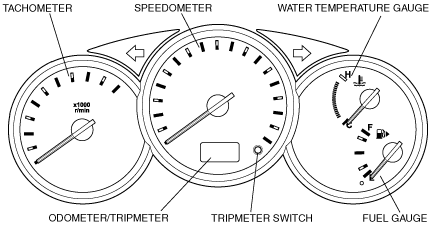

Meter And Gauge
absggn00000361
|

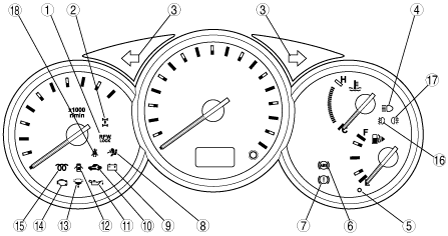

Warning And Indicator Light
absggn00000373
|
|
No. |
Warning and indicator light |
Input signal source |
Note |
|---|---|---|---|
|
1
|
RFW indicator light
|
RFW control module
|
4WD
|
|
2
|
4x4 indicator light
|
RFW main switch
|
4WD
|
|
3
|
Turn indicator light
|
Flasher control module
|
—
|
|
4
|
High-beam indicator light
|
Headlight (HI)
|
—
|
|
5
|
Fuel-level warning light
|
Fuel gauge sender unit
|
—
|
|
6
|
ABS warning light
|
• ABS HU/CM (with 4-W ABS)
• ABS control module (with rear ABS)
|
With ABS
|
|
7
|
Brake system warning light
|
• Parking brake switch
• Brake fluid level sensor
• ABS HU/CM (with 4-W ABS)
• ABS control module (with rear ABS)
|
—
|
|
8
|
Air bag system warning light
|
SAS control module
|
With air bag system
|
|
9
|
Generator warning light
|
Generator
|
—
|
|
10
|
Security light
|
• Immobilizer unit
• Theft deterrent control module
|
—
|
|
11
|
Oil pressure warning light
|
Oil pressure switch
|
—
|
|
12
|
Door ajar warning light
|
Door switches
|
—
|
|
13
|
Sedimentor warning light
|
Sediment switch
|
WE-C, WL-3, WL-C, WLT-1, WLT-2
|
|
14
|
MIL
|
PCM
|
—
|
|
15
|
Glow indicator light
|
PCM
|
WE-C, WL-3, WL-C, WLT-1, WLT-2
|
|
16
|
Front fog indicator light
|
Front fog light relay
|
With front fog light
|
|
17
|
Rear fog indicator light
|
Rear fog light relay
|
—
|
|
18
|
Seat belt warning light
|
Buckle switch
|
—
|
