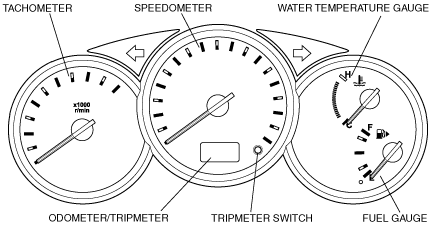

INSTRUMENT CLUSTER STRUCTURAL VIEW [5R55S]
id0922001012z3
Meter And Gauge
arnffn00000291
|

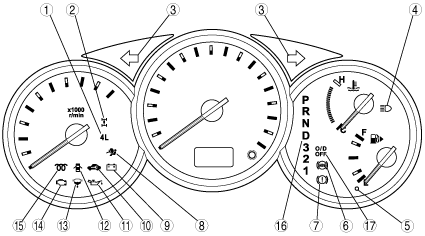

Warning And Indicator Light
absggw00001862
|
|
No. |
Warning and indicator light |
Input signal source |
Note |
|---|---|---|---|
|
1
|
4L indicator light
|
TCM
|
4WD
|
|
2
|
4WD indicator light
|
TCM
|
4WD
|
|
3
|
Turn indicator light
|
Flasher control module
|
—
|
|
4
|
High-beam indicator light
|
Headlight (HI)
|
—
|
|
5
|
Fuel-level warning light
|
Fuel gauge sender unit
|
—
|
|
6
|
ABS warning light
|
• ABS HU/CM (with 4-W ABS)
• ABS control module (with rear ABS)
|
With ABS
|
|
7
|
Brake system warning light
|
• Parking brake switch
• Brake fluid level sensor
|
—
|
|
8
|
Air bag system warning light
|
SAS control module
|
With air bag system
|
|
9
|
Generator warning light
|
Generator
|
—
|
|
10
|
Security light
|
• Immobilizer unit
• Theft deterrent control module
|
—
|
|
11
|
Oil pressure warning light
|
Oil pressure switch
|
—
|
|
12
|
Door ajar warning light
|
Door switches
|
—
|
|
13
|
Sedimentor warning light
|
Sediment switch
|
—
|
|
14
|
MIL
|
PCM
|
—
|
|
15
|
Glow indicator light
|
PCM
|
—
|
|
16
|
Selector indicator light
|
TCM
|
—
|
|
17
|
O/D OFF indicator light
|
TCM
|
—
|
