FUEL GAUGE SENDER UNIT INSPECTION

id092200801800

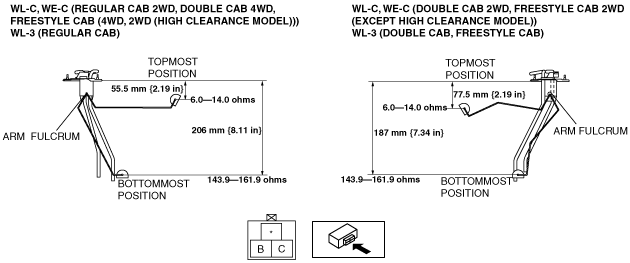

1.  Move the float to the topmost and bottommost positions, and verify that the resistance between terminals B and C of the unit and the position of the float are as indicated in the figure.

dbg922zwbo01

•  If they are not as indicated, replace the fuel gauge sender unit.
