1. Component views

Front final drive (φ194 mm {7.64 in})

Part name

  1. Front final drive
  2. Flange nut
  3. Flange
  4. Dust cover
  5. Oil seal
  6. Outer bearing
  7. Bolt
  8. Differential carrier
  9. Collapsible distance piece
  10. Inner bearing
  11. Adjust shim
  12. Drive pinion
  13. Bolt
  14. Adjust shim
  15. Side bearing
  16. differential cage assembly
  17. Ring gear
  18. Bearing cap
  19. Bolt
  20. Front drive axle
  21. Gasket
  22. Filler plug and drain plug

Tightening torque

2: 177 to 275 N・m { 18.0 to 28.0 kgf・m / 131 to 203 lb・ft }

7: 26 N・m { 2.7 kgf・m / 19 lb・ft }

13: 108 N・m { 11.0 kgf・m / 80 lb・ft }

19: 98 N・m { 10.0 kgf・m / 72 lb・ft }

22: 50 N・m { 5.1 kgf・m / 37 lb・ft }

Front differential cage (φ194 mm {7.64 in})

Part name

  1. Lock pin
  2. Pinion gear
  3. Side gear thrust washer
  4. Side gear
  5. Cross pin
  6. Ring gear
  7. Bolt
  8. Differential cage

Tightening torque

7: 108 N・m { 11.0 kgf・m / 80 lb・ft }

Rear final drive (φ220 mm {8.66 in})

Part name

  1. Flange nut
  2. Flange
  3. Oil seal
  4. Outer bearing inner race
  5. Outer bearing outer race
  6. Differential carrier
  7. Bearing cap
  8. Bolt
  9. Inner bearing outer race
  10. Collapsible distance piece
  11. Inner bearing inner race
  12. Adjust shim
  13. Drive pinion
  14. Ring gear
  15. differential cage assembly
  16. Adjust shim
  17. Side bearing inner race
  18. Side bearing outer race
  19. Bolt

Tightening torque

1: 245 to 294 N・m { 25.0 to 30.0 kgf・m / 181 to 217 lb・ft }

8: 108 N・m { 11.0 kgf・m / 80 lb・ft }

19: 145 N・m { 14.8 kgf・m / 107 lb・ft }

Rear final drive (φ220 mm {8.66 in}) (Differential lock)

Part name

  1. Flange nut
  2. Flange
  3. Oil seal
  4. Outer bearing inner race
  5. Outer bearing outer race
  6. Bolt
  7. Intermediate connector
  8. Differential carrier
  9. Differential lock position switch
  10. Bolt
  11. Bearing cap
  12. Bolt
  13. Inner bearing outer race
  14. Collapsible distance piece
  15. Inner bearing inner race
  16. Adjust shim
  17. Drive pinion
  18. Ring gear
  19. Differential lock assembly
  20. Adjust shim
  21. Side bearing inner race
  22. Side bearing outer race
  23. Bolt

Tightening torque

1: 245 to 294 N・m { 25.0 to 30.0 kgf・m / 181 to 217 lb・ft }

6: 9.0 N・m { 0.9 kgf・m / 80 lb・in }

10: 9.0 N・m { 0.9 kgf・m / 80 lb・in }

12: 108 N・m { 11.0 kgf・m / 80 lb・ft }

23: 145 N・m { 14.8 kgf・m / 107 lb・ft }

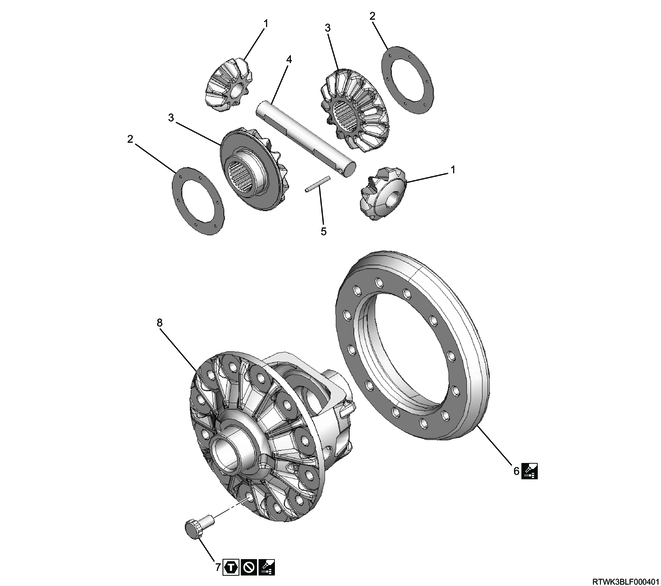

Rear differential cage (φ220 mm {8.66 in})

Part name

  1. Pinion gear
  2. Side gear thrust washer
  3. Side gear
  4. Cross pin
  5. Lock pin
  6. Ring gear
  7. Bolt
  8. Differential cage

Tightening torque

7: 145 N・m { 14.8 kgf・m / 107 lb・ft }

Rear differential cage (φ220 mm {8.66 in}) (Differential lock)

Part name

  1. Differential cage A
  2. Thrust washer
  3. Side gear
  4. Pinion washer
  5. Pinion gear
  6. Pinion shaft S
  7. Lock pin
  8. Pinion shaft L
  9. Return spring
  10. Thrust washer
  11. Cam ring
  12. Differential cage B
  13. Screw bolt
  14. Plunger
  15. Position plate
  16. Coil assembly
  17. Solenoid washer
  18. Ring gear
  19. Bolt
  20. Bolt

Tightening torque

13: 4.5 N・m { 0.5 kgf・m / 40 lb・in }

19: 6.9 N・m { 0.7 kgf・m / 61 lb・in }

20: 145 N・m { 14.8 kgf・m / 107 lb・ft }

Rear differential cage (φ220 mm {8.66 in}) （LSD）

Part name

  1. Flange nut
  2. Flange
  3. Oil seal
  4. Outer bearing inner race
  5. Outer bearing outer race
  6. Differential carrier
  7. Bearing cap
  8. Bolt
  9. Inner bearing outer race
  10. Collapsible distance piece
  11. Inner bearing inner race
  12. Adjust shim
  13. Drive pinion
  14. Ring gear
  15. differential cage assembly
  16. Adjust shim
  17. Side bearing inner race
  18. Side bearing outer race
  19. Bolt

1: 245 to 294 N・m { 25.0 to 30.0 kgf・m / 181 to 217 lb・ft }

8: 108 N・m { 11.0 kgf・m / 80 lb・ft }

19: 145 N・m { 14.8 kgf・m / 107 lb・ft }

Rear differential cage (φ220 mm {8.66 in}) （LSD）

Part name

  1. Screw
  2. Differential cage B
  3. Thrust washer
  4. spring plate
  5. spring plate
  6. Friction plate
  7. Friction disc
  8. Friction plate
  9. Friction disc
  10. pressure ring
  11. Side gear
  12. Pinion gear and spider
  13. Side gear
  14. pressure ring
  15. Friction disc
  16. Friction plate
  17. Friction disc
  18. Friction plate
  19. spring plate
  20. spring plate
  21. Thrust washer
  22. Differential cage A
