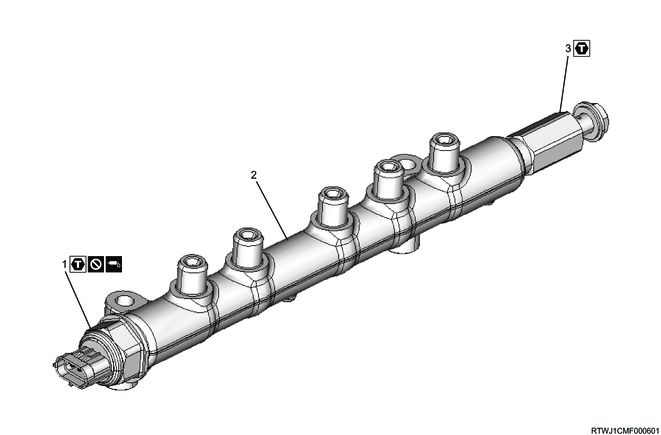

1. Component views
FRP sensor
Part name
- FRP sensor
- Common rail (fuel rail)
- Pressure limiter
Tightening torque
1: 35 N・m { 3.6 kgf・m / 26 lb・ft }
3: 172 N・m { 17.5 kgf・m / 127 lb・ft }
FRP sensor
Part name
Tightening torque
1: 35 N・m { 3.6 kgf・m / 26 lb・ft }
3: 172 N・m { 17.5 kgf・m / 127 lb・ft }
