Supplementary Information (4JJ3 with DPD)

1. Component views

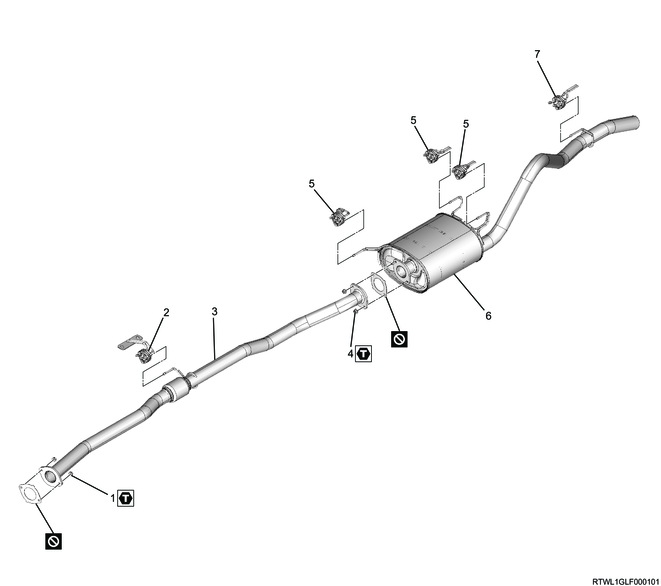

Exhaust pipe

Part name

  1. Nut
  2. Front hanger rubber
  3. Front exhaust pipe
  4. Nut
  5. Silencer hanger rubber
  6. Silencer
  7. Rear hanger rubber

Tightening torque

1: 67 N・m { 6.8 kgf・m / 49 lb・ft }

4: 43 N・m { 4.4 kgf・m / 32 lb・ft }

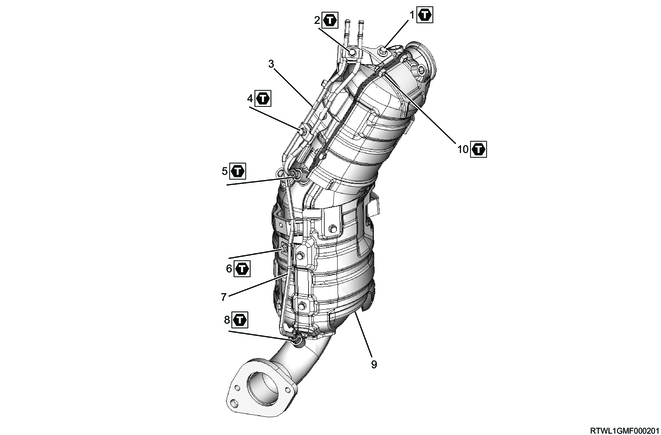

DPD

Part name

  1. Bolt
  2. Clip bolt
  3. Front side differential pressure pipe
  4. Clip bolt
  5. Sleeve nut
  6. Bolt
  7. Rear differential pressure pipe
  8. Sleeve nut
  9. DPD
  10. Bolt

Tightening torque

1: 25 N・m { 2.5 kgf・m / 18 lb・ft }

2: 10.0 N・m { 1.0 kgf・m / 89 lb・in }

4: 10.0 N・m { 1.0 kgf・m / 89 lb・in }

5: 34 N・m { 3.5 kgf・m / 25 lb・ft }

6: 10.0 N・m { 1.0 kgf・m / 89 lb・in }

8: 34 N・m { 3.5 kgf・m / 25 lb・ft }

10: 10.0 N・m { 1.0 kgf・m / 89 lb・in }
