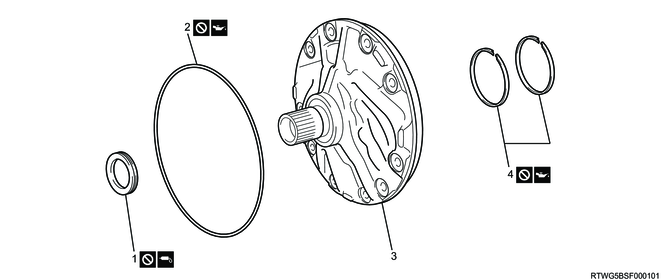

1. Component views
Oil pump
Part name
- Oil pump oil seal
- Transaxle oil seal
- Oil pump assembly
- Seal ring
2. Oil pump reassembly
1) Coat 2 new seal rings and the sliding surface of the stator shaft with ATF.
Caution
- Do not reuse the seal rings.
2) Compress the 2 seal rings as shown in the figure. Then install the 2 seal rings to the oil pump assembly.
| Outer diameter |
Thickness |
| 67.46 mm { 2.6559 in } |
2.32 mm { 0.0913 in } |
Caution
- Be careful not to expand the seal rings too much.
- When shortening the seal rings, make sure to wrap them in the axial direction.
Note
- Check that seal rings rotate smoothly after installing them.
Standard value
a: 0 to 5 mm { 0.0000 to 0.1969 in }
3) Coat a new transaxle oil seal ring with ATF.
Caution
- Do not reuse the seal rings.
4) Install it to the oil pump assembly.
| Inner diameter |
Thickness |
| 218.4 mm { 8.5984 in } |
3.5 mm { 0.1378 in } |
Caution
- Be careful not to damage the transaxle oil seal ring.
- Make sure that the painted part of the transaxle oil seal ring is on the outer circumference.
- Install the transaxle oil seal ring so that it touches the oil pump assembly, being careful not to twist it.
Legend
- Paint
5) Coat the lip of the new oil pump oil seal with grease.
Caution
- Do not reuse the oil seal.
6) Using the special tool and a hammer, install a new oil pump oil seal to the oil pump assembly.
Standard: -0.3 to 0.3 mm { -0.0118 to 0.0118 in } From the end of the pump body
Caution
- Be careful not to damage the oil pump oil seal.
- Be careful not to damage the oil pump assembly.
SST: 5-8840-2962-0 - oil seal installer
Legend
- 5-8840-2962-0
