Slave cylinder disassembly (MVL)

1. Component views

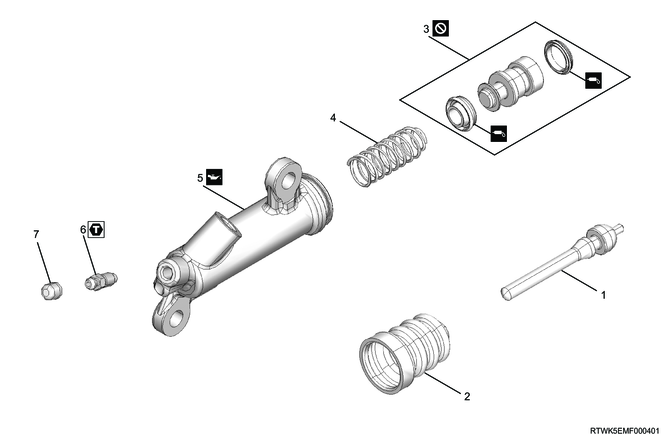

Slave cylinder (RZ4E)

Part name

  1. Push rod
  2. Boot
  3. Piston and piston cup
  4. Spring
  5. Cylinder body
  6. Bleeder cap
  7. Bleeder screw

Tightening torque

7: 8 N・m { 0.8 kgf・m / 71 lb・in }

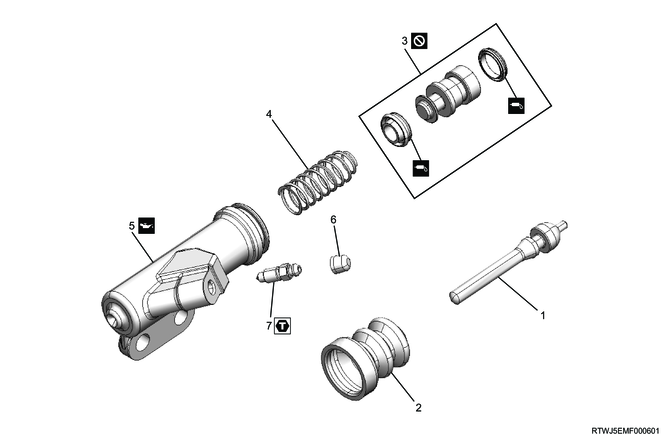

Slave cylinder (4JJ3)

Part name

  1. Push rod
  2. Boot
  3. Piston and piston cup
  4. Spring
  5. Cylinder body
  6. Bleeder screw
  7. Bleeder cap

Tightening torque

6: 8 N・m { 0.8 kgf・m / 71 lb・in }

2. Slave cylinder disassembly

1) Remove the boot from the cylinder body.

Caution

  • Because brake fluid damages the painted surface or plastic surface, take care not to spill it.

RZ4E

4JJ3

2) Remove the push rod from the cylinder body.

3) Remove the piston from the cylinder body.

4) Remove the piston cup from the piston.

5) Remove the spring from the cylinder body.

6) Remove the bleeder screw from the cylinder body.
