Radiator grille removal

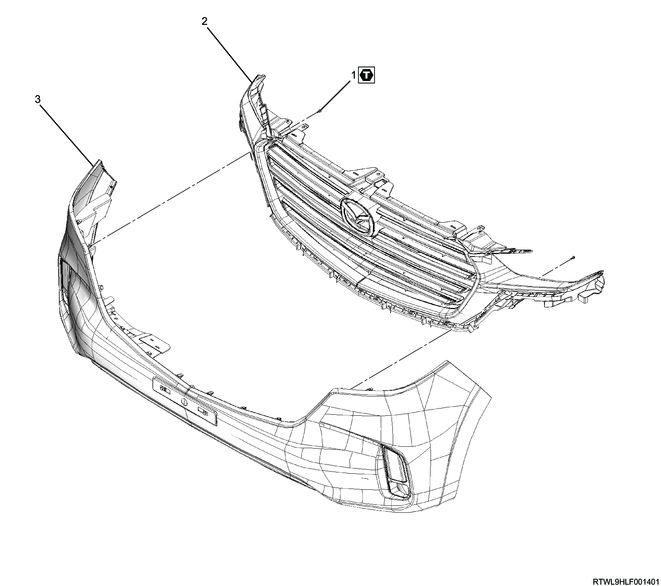

1. Component views

Radiator grille

Part name

  1. Screw
  2. Radiator grille
  3. Front bumper

Tightening torque

4: 1.7 N・m { 0.17 kgf・m / 15.0 lb・in }

2. Front bumper removal

1) Remove the intake air duct from the air cleaner box and radiator core support.

Legend

  1. Intake air duct
  2. Clip

2) Remove the soft nose from the front bumper support.

3) Remove the front bumper support from vehicle.

Legend

  1. Clip
  2. Screw
  3. Soft nose
  4. Front bumper support

4) Remove the front bumper from the vehicle.

Legend

  1. Front bumper
  2. Clip

5) Disconnect the connector from the front bumper.

3. Radiator grille removal

1) Remove the radiator grille from the front bumper.

Legend

  1. Radiator grille
