Front bumper disassembly

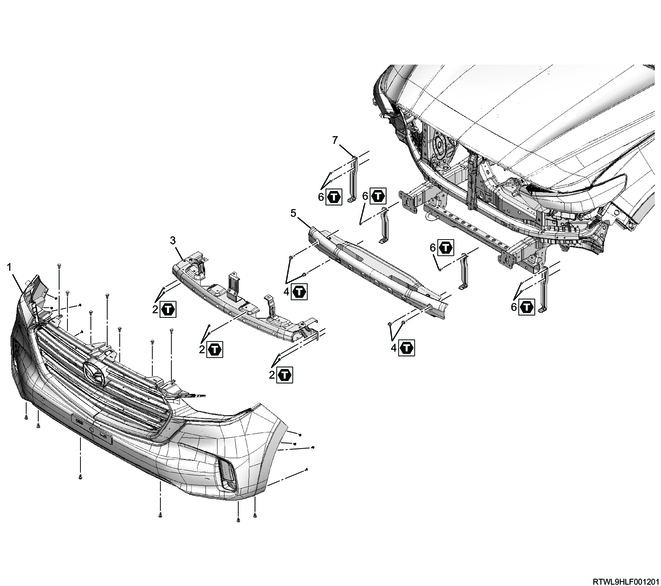

1. Component views

Front bumper

Part name

  1. Front bumper
  2. Nut
  3. Front bumper impact support
  4. Bolt
  5. Front bumper impact bar
  6. Bolt
  7. Bumper frame bracket

Tightening torque

2: 8.9 N・m { 0.9 kgf・m / 79 lb・in }

4: 62 N・m { 6.3 kgf・m / 46 lb・ft }

6: 8.9 N・m { 0.9 kgf・m / 79 lb・in }

2. Front bumper impact support removal

1) Disconnect the air guide from the front bumper impact support.

2) Remove the headlight fixing bolt from the front bumper impact support.

3) Remove the front bumper impact support from the vehicle.

Legend

  1. Front bumper impact support

3. Front bumper impact bar removal

1) Remove the front bumper impact bar from the vehicle.

Legend

  1. Front bumper impact bar

4. Bumper frame bracket removal

1) Remove the bumper frame bracket from vehicle.

Legend

  1. Bumper frame bracket

5. Front air dam removal

1) Remove the front air dam from the front bumper.

Legend

  1. Front air dam (Left side)
  2. Front air dam (Center)
  3. Front air dam (Right side)

6. Front turn signal light removal

1) Remove the bracket from the front bumper.

Legend

  1. Bracket

2) Remove the front turn signal light from the bracket.

Legend

  1. Front turn signal light

7. Radiator grille removal

1) Remove the radiator grille from the front bumper.

Legend

  1. Radiator grille

8. Sonar sensor removal

1. Models with front sonar sensors

1) Remove the sonar sensor from the sonar sensor bracket.

Legend

  1. Mark
  2. Sonar sensor bracket
  3. Sonar sensor

2) Remove the sonar sensor bracket from the front bumper.

Legend

  1. Notched section
  2. Rib
  3. Sonar sensor bracket
