Fuel filter installation (RZ4E-TC)

1. Component views

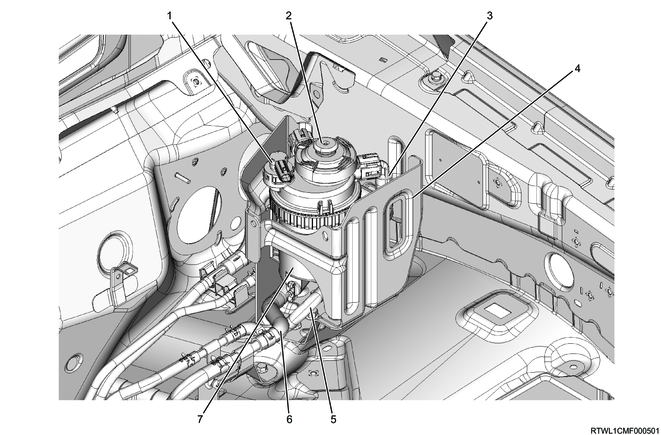

Fuel filter (Except cold region specifications)

Part name

  1. Pressure switch
  2. Priming pump
  3. Fuel feed hose (Fuel tank side)
  4. Fuel filter bracket
  5. Fuel return hose
  6. Fuel feed hose (Supply pump side)
  7. Fuel filter

Fuel filter (Cold region specifications)

Part name

  1. Pressure switch
  2. Priming pump
  3. Fuel feed hose (Fuel tank side)
  4. Fuel filter bracket
  5. Recirculation valve
  6. Fuel return hose
  7. Fuel feed hose (Supply pump side)
  8. Fuel filter

2. Fuel filter installation

1) Connect the fuel feed hose to the fuel filter.

2) Install the fuel filter to the fuel filter bracket.

3) Connect the connector to the pressure switch.

4) Connect the connector to the fuel sedimenter switch.

5) Install the fuel filter bracket (front side) to the fender.

Tightening torque: 10 N・m { 1.0 kgf・m / 89 lb・in }

3. Preliminary and post procedures

1. Post procedures

1) Connect the battery cable to the battery negative terminal.

2) Referring to the following, perform the setting of the front door power window switch with AUTO UP/AUTO DOWN function.

Refer to "9.Body, Cab, Accessories 9T.Glass, Windows, Mirrors front door power window switch setting".

3) Close the engine hood.

4. Fuel air bleed

1) Press the priming pump until it becomes hard.

Caution

  • Completely bleed air, as insufficient air bleeding may lead to engine malfunctions.

Legend

  1. Priming pump
  2. Fuel filter with sedimenter
