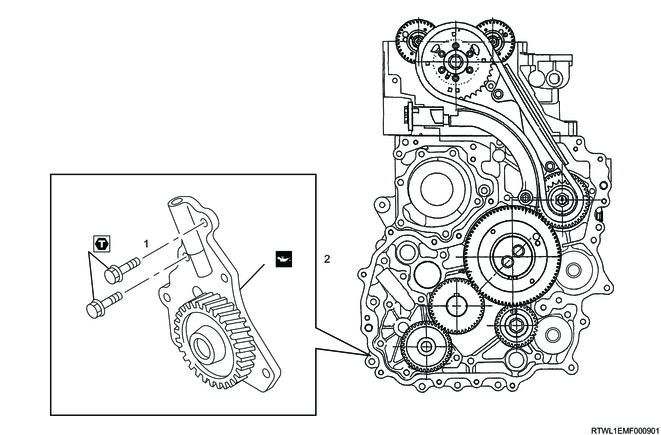

Oil pump removal (4JJ3 without DPD)

Part name

Tightening torque

1: 25 N・m { 2.5 kgf・m / 18 lb・ft }

Refer to "1.Engine 1B.Mechanical(4JJ3 without DPD) Crankshaft pulley removal".

1) Remove the noise cover from the timing chain lower cover.

1) Disconnect the power steering oil pump and power steering oil hose as a set from the timing gear case.

Legend

2) Remove the power steering oil hose from the bracket.

Legend

1) Remove the vacuum pipe as a set with the vacuum hose from the timing gear case and vacuum pump.

2) Remove the vacuum pump oil pipe from the vacuum pump and cylinder block.

3) Remove the vacuum pump from the gear case cover.

1) Remove the cover from the gear case cover.

2) Remove the gear case cover from the timing gear case.

1) Remove the oil pump from the timing gear case.

Legend
