Wiper arm installation

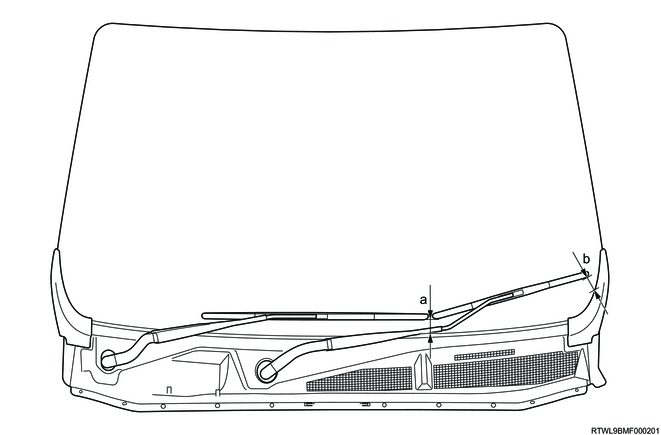

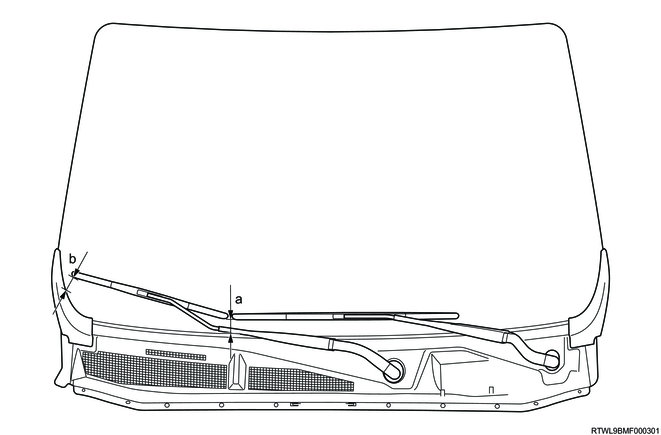

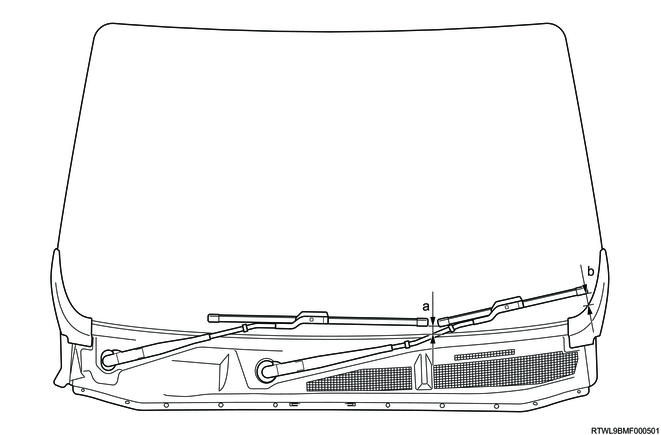

1) Install to the vehicle so that the wiper blades comes to the positions away from the upper edge of the front window molding as shown in the diagram.

Tightening torque: 31 N・m { 3.2 kgf・m / 23 lb・ft }

Standard value

a: 43.3 mm { 1.70 in }

b: 53.5 mm { 2.11 in }

Standard value

a: 43.3 mm { 1.70 in }

b: 53.5 mm { 2.11 in }

Standard value

a: 21.0 mm { 0.83 in }

b: 25.0 mm { 0.98 in }

Standard value

a: 21.0 mm { 0.83 in }

b: 25.0 mm { 0.98 in }

2) Install the wiper arm cover to the wiper arm.
