Middle planetary ring gear disassembly (AWR6B45)

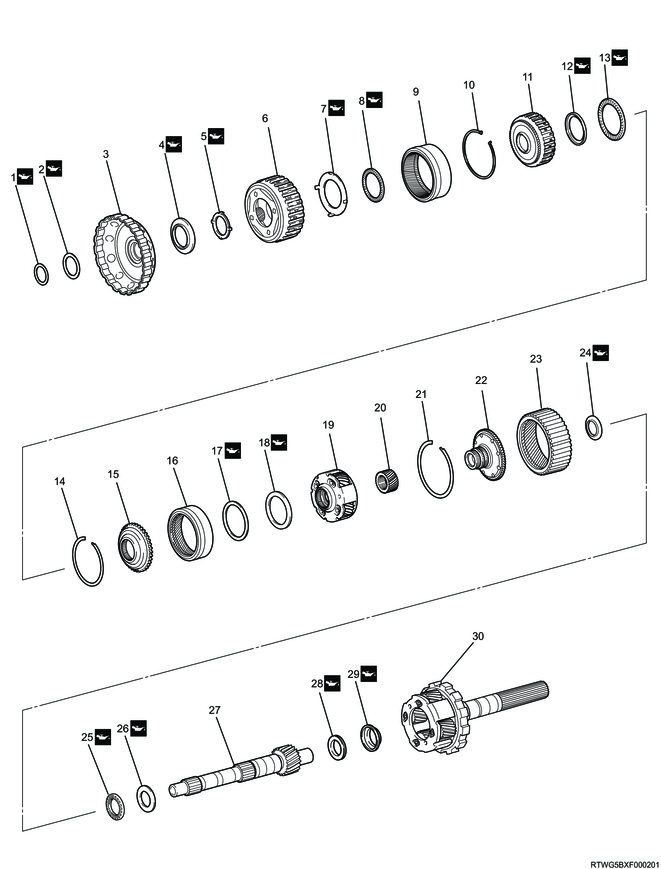

1. Component views

Gear and shaft

Part name

  1. Thrust needle roller bearing with race
  2. Thrust bearing race
  3. Sun gear input drum
  4. Thrust needle roller bearing with race
  5. Thrust bearing race
  6. Front planetary gear assembly
  7. Thrust bearing race
  8. Thrust needle roller bearing with race
  9. Front planetary ring gear
  10. Snap ring
  11. Front planetary ring gear flange sub-assembly
  12. Thrust bearing race
  13. Thrust needle roller bearing with race
  14. Snap ring
  15. Middle planetary ring gear flange
  16. Middle planetary ring gear
  17. Thrust needle roller bearing
  18. Thrust bearing race
  19. Middle planetary gear assembly
  20. Planetary sun gear
  21. Snap ring
  22. Rear planetary ring gear flange
  23. Rear planetary ring gear
  24. Thrust bearing race
  25. Thrust needle roller bearing
  26. Thrust bearing race
  27. Intermediate shaft
  28. Thrust needle roller bearing with race
  29. Thrust bearing race
  30. Rear planetary gear assembly

2. Middle planetary ring gear flange removal

1) Using a screwdriver, remove the snap ring from the middle planetary ring gear flange with middle planetary ring gear.

2) Remove the middle planetary ring gear from the middle planetary ring gear flange.
