1. Component views

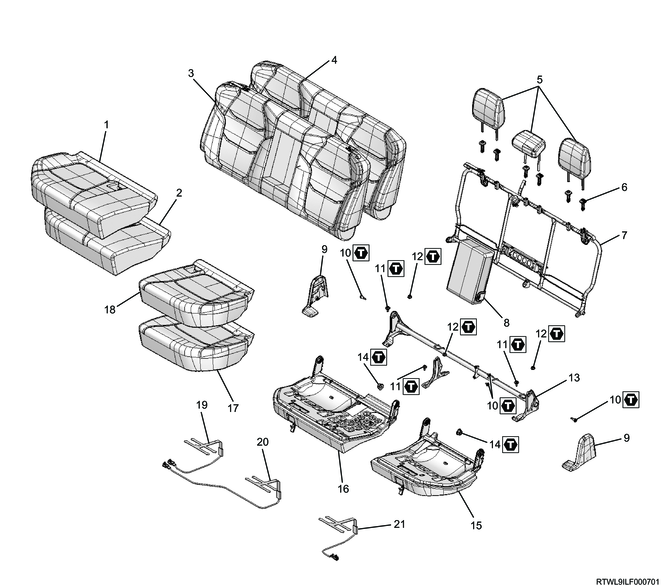

Rear seat (Crew cab)
Part name
- Rear seat cushion cover (RH)
- Rear seat cushion pad (RH)
- Rear seat back cover
- Rear seat back pad
- Rear seat headrest
- Headrest holder
- Rear seat back frame
- Armrest
- Side cover
- Bolt
- Bolt
- Nut
- Hinge bracket
- Nut
- Rear seat cushion frame (LH)
- Rear seat cushion frame (RH)
- Rear seat cushion pad (LH)
- Rear seat cushion cover (LH)
- Seat belt reminder sensor (RH) (If so equipped)
- Seat belt reminder sensor (Center) (If so equipped)
- Seat belt reminder sensor (LH) (If so equipped)
Tightening torque
10: 25 N・m { 2.5 kgf・m / 18 lb・ft }
11: 46 N・m { 4.7 kgf・m / 34 lb・ft }
12: 46 N・m { 4.7 kgf・m / 34 lb・ft }
14: 25 N・m { 2.5 kgf・m / 18 lb・ft }

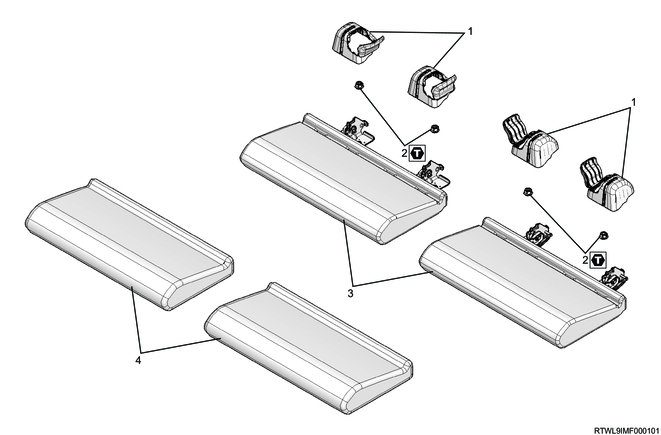

Rear seat (Extend cab)
Part name
- Rear seat cover
- Nut
- Rear seat cushion pad
- Rear seat cushion cover
Tightening torque
2: 46 N・m { 4.7 kgf・m / 34 lb・ft }
2. Rear seat installation
1. Crew cab
1) Install the rear seat to the floor.
Tightening torque: 46 N・m { 4.7 kgf・m / 34 lb・ft }
2) Install the side cover to the hinge bracket.
Legend
- Side cover
- Hinge bracket
3) Pass the rear tongue side seat belt through the seat belt guide, connect the seat belt guide to the rear seat headrest.
Legend
- Seat belt guide
2. Extend cab
1) Install the rear seat cover to the rear seat.
Legend
- Rear seat
- Rear seat cover
2) Install the screw to the rear seat.
Legend
- Screw
3) Install the rear seat to the floor.
Tightening torque: 46 N・m { 4.7 kgf・m / 34 lb・ft }
Legend
- Nut
- Cap
3. Rear tongue side seat belt (center) connect
1) Pull out the rear tongue side seat belt (center) so that latch plate B faces the center of the vehicle.
Note
- Pull out the rear tongue side seat belt (center) without twisting.
Legend
- Latch plate B
- Rear tongue side seat belt (CTR)
2) Insert latch plate A into buckle A until a clicking sound can be heard.
Legend
- Buckle A
- Latch plate A
3) Pull the rear tongue side seat belt (center) in the direction of the arrow, and check that latch plate A and buckle A are securely fixed.
Legend
- Rear tongue side seat belt (CTR)
- Buckle A
- Latch plate A
4. Preliminary and post procedures
1. Post procedures
1) Connect the battery cable to the battery negative terminal.
2) Referring to the following, perform the setting of the front door power window switch with AUTO UP/AUTO DOWN function.
Refer to "9.Body, Cab, Accessories 9T.Glass, Windows, Mirrors front door power window switch setting".
3) Close the engine hood.
