Oil pressure switch removal (RZ4E-TC)

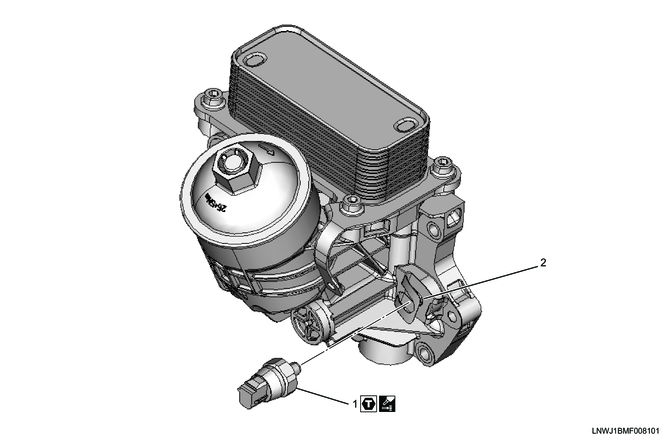

1. Component views

Oil pressure switch

Part name

  1. Oil pressure switch
  2. Clip

Tightening torque

1: 15 N・m { 1.5 kgf・m / 11 lb・ft }

2. Preliminary and post procedures

1. Preliminary procedures

1) Open the engine hood.

2) Disconnect the battery cable from the battery negative terminal.

Caution

  • After turning OFF the ignition switch (power mode for models with passive entry and start system), do not disconnect the battery cable within 3 minutes.
  • If the battery cable is disconnected within 3 minutes, the vehicle electronic control system may malfunction.
  • If the battery cable is disconnected, perform the setting of the front door power window switch with AUTO UP/AUTO DOWN function after connecting the battery negative terminal.

3. Oil pressure switch removal

1) Disconnect the connector from the oil pressure switch.

2) Remove the oil pressure switch and clip from the oil filter.

Legend

  1. Oil pressure switch
  2. Clip
