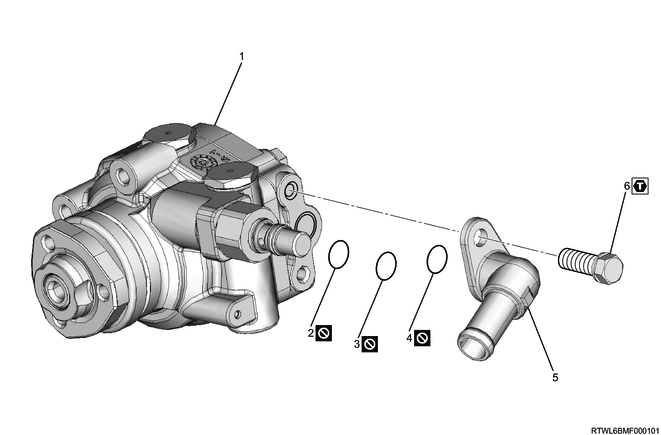

1. Component views
Power steering oil pump (RZ4E-TC engine models)
Part name
- Power steering oil pump
- O-ring
- O-ring
- O-ring
- Suction pipe
- Bolt
Tightening torque
6: 16 N・m { 1.6 kgf・m / 12 lb・ft }
2. Power steering oil pump disassembly
Caution
- Do not disassemble the power steering oil pump.
1) Remove the suction pipe from the power steering oil pump.
2) Remove the O-ring from the suction pipe.
