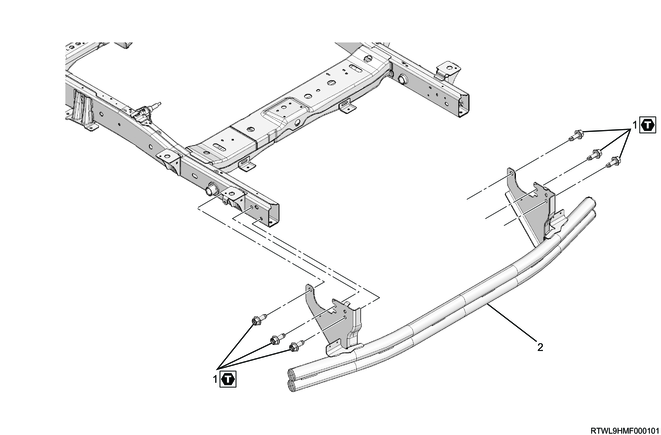

1. Component views
Rear underrun protector
Part name
- Bolt
- Rear underrun protector
Tightening torque
1: 150 N・m { 15.3 kgf・m / 111 lb・ft }
2. Rear underrun protector installation
1) Install the rear underrun protector to the vehicle.
Tightening torque: 150 N・m { 15.3 kgf・m / 111 lb・ft }
