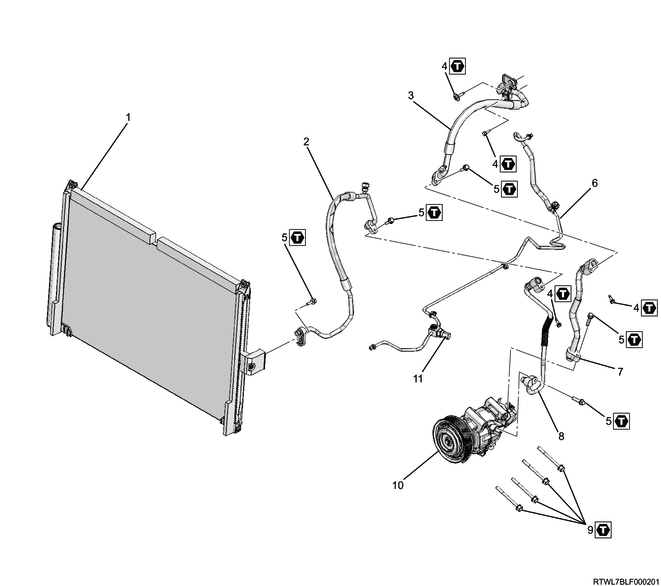

A/C compressor (RZ4E) installation

Part name

Tightening torque

4: 6.6 N・m { 0.67 kgf・m / 58 lb・in }

5: 15 N・m { 1.5 kgf・m / 11 lb・ft }

9: 52 N・m { 5.3 kgf・m / 38 lb・ft }

1) Install the A/C compressor to the bracket.

Tightening torque: 52 N・m { 5.3 kgf・m / 38 lb・ft }

2) Connect the connector to the A/C compressor.

1) Install the A/C pipe to the A/C compressor.

Tightening torque: 15 N・m { 1.5 kgf・m / 11 lb・ft } A/C pipe

Tightening torque: 6.6 N・m { 0.7 kgf・m / 58 lb・in } Bracket

Legend

Legend

2) Connect the A/C hose to the A/C pipe.

Tightening torque: 15 N・m { 1.5 kgf・m / 11 lb・ft }

Legend

Refer to "1.Engine 1J.Electrical(RZ4E-TC) generator installation".

1) Fill refrigerant.
