Supplementary Information (4JJ3 with DPD)

1. Component views

EGR valve

Part name

  1. EGR cooler bypass valve
  2. EGR valve
  3. Nut
  4. Bolt
  5. Bolt
  6. EGR valve adapter
  7. Nut and bolt
  8. Bolt

Tightening torque

3: 25 N・m { 2.5 kgf・m / 18 lb・ft }

4: 25 N・m { 2.5 kgf・m / 18 lb・ft }

5: 25 N・m { 2.5 kgf・m / 18 lb・ft }

7: 25 N・m { 2.5 kgf・m / 18 lb・ft }

8: 25 N・m { 2.5 kgf・m / 18 lb・ft }

EGR cooler bypass valve

Part name

  1. EGR cooler bypass valve
  2. EGR valve
  3. Nut
  4. Bolt
  5. Bolt
  6. EGR valve adapter
  7. Nut and bolt
  8. Bolt

Tightening torque

3: 25 N・m { 2.5 kgf・m / 18 lb・ft }

4: 25 N・m { 2.5 kgf・m / 18 lb・ft }

5: 25 N・m { 2.5 kgf・m / 18 lb・ft }

7: 25 N・m { 2.5 kgf・m / 18 lb・ft }

8: 25 N・m { 2.5 kgf・m / 18 lb・ft }

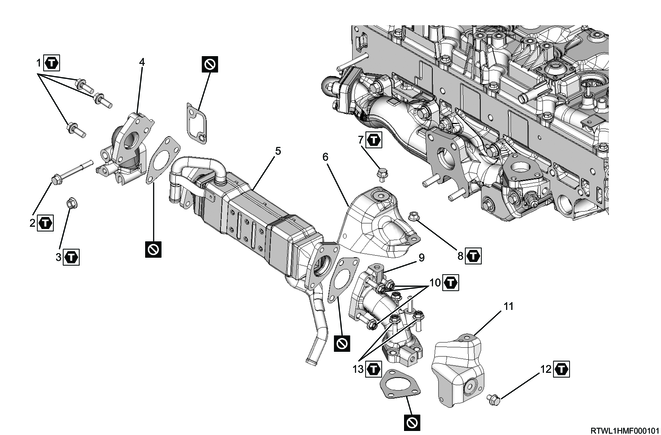

EGR cooler

Part name

  1. Bolt
  2. Bolt
  3. Nut
  4. EGR duct
  5. EGR cooler
  6. Upper heat protector
  7. Bolt
  8. Nut
  9. EGR duct
  10. Bolt
  11. Lower heat protector
  12. Bolt
  13. Bolt

Tightening torque

1: 27 N・m { 2.8 kgf・m / 20 lb・ft }

2: 27 N・m { 2.8 kgf・m / 20 lb・ft }

3: 27 N・m { 2.8 kgf・m / 20 lb・ft }

7: 25 N・m { 2.5 kgf・m / 18 lb・ft }

8: 25 N・m { 2.5 kgf・m / 18 lb・ft }

10: 27 N・m { 2.8 kgf・m / 20 lb・ft }

12: 25 N・m { 2.5 kgf・m / 18 lb・ft }

13: 27 N・m { 2.8 kgf・m / 20 lb・ft }
