Front pillar trim cover removal

1. Component views

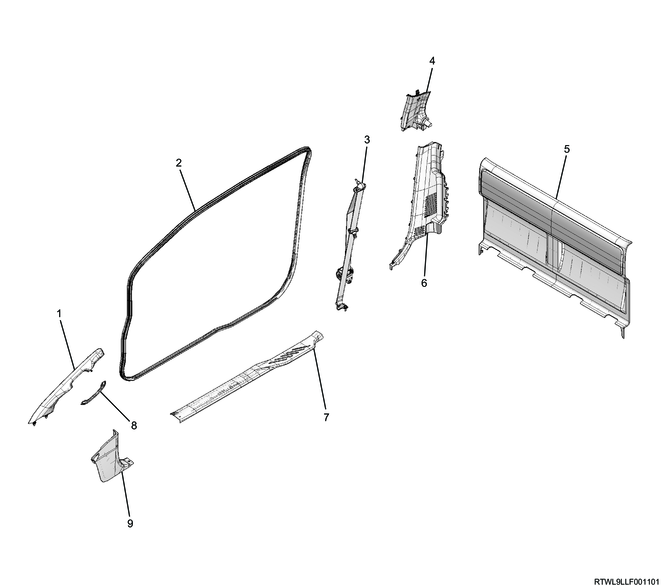

Regular cab

Part name

  1. Front pillar trim cover
  2. Front door finisher
  3. Front tongue side seat belt
  4. Rear pillar upper trim cover
  5. Rear end upper trim cover
  6. Rear end trim cover
  7. Rear pillar lower trim cover
  8. Front sill plate
  9. Dash side trim pad

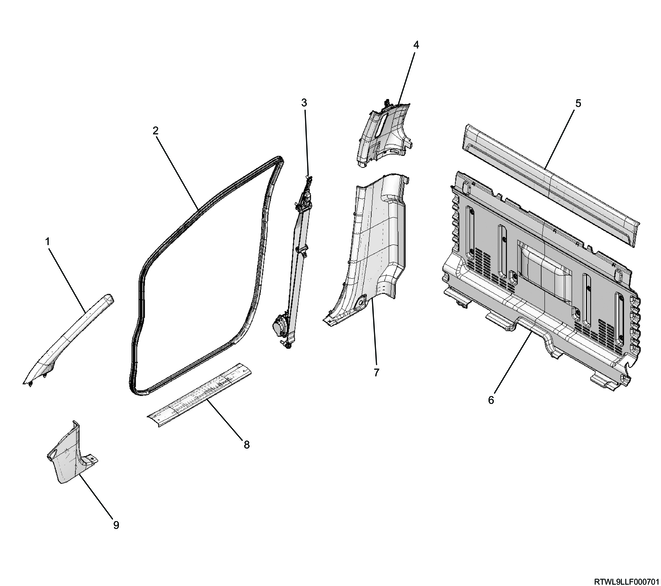

Crew cab

Part name

  1. Front pillar trim cover
  2. Front door finisher
  3. Front tongue side seat belt
  4. Center pillar upper trim cover
  5. Assist grip
  6. Rear door finisher
  7. Rear upper trim cover
  8. Rear lower trim cover
  9. Rear end upper trim cover
  10. Rear end trim cover
  11. Rear tongue side seat belt
  12. Rear tongue side center seat belt
  13. Rear sill plate
  14. Center pillar lower trim cover
  15. Front sill plate
  16. Assist grip
  17. Dash side trim pad

Extend cab

Part name

  1. Front pillar trim cover
  2. Front door finisher
  3. Rear tongue side seat belt
  4. Rear pillar upper trim cover
  5. Rear end trim cover
  6. Rear pillar lower trim cover
  7. Front sill plate
  8. Assist grip
  9. Dash side trim pad

2. Front sill plate removal

1) Remove the front sill plate from the floor.

Regular cab, crew cab

Legend

  1. Front sill plate
  2. Clip
  3. Claw section

Extend cab

Legend

  1. Front sill plate
  2. Clip
  3. Claw section

3. Front door finisher removal

1) Remove the front door finisher from the body.

4. Front pillar trim cover removal

1. Models with assist grips

1) Remove the assist grip from the front pillar trim cover.

2) Remove the front pillar trim cover from the front pillar.

Legend

  1. Front pillar trim cover
  2. Assist grip

2. Models without assist grips

1) Remove the front pillar trim cover from the front pillar.

Legend

  1. Front pillar trim cover
  2. Clip
