1. Component views
Rear propeller shaft (Two-piece type)
Part name
- Bolt
- Nut
- Nut
Tightening torque
1: 69 N・m { 7.0 kgf・m / 51 lb・ft }
2: 118 N・m { 12.0 kgf・m / 87 lb・ft }
3: 103 N・m { 10.5 kgf・m / 76 lb・ft }

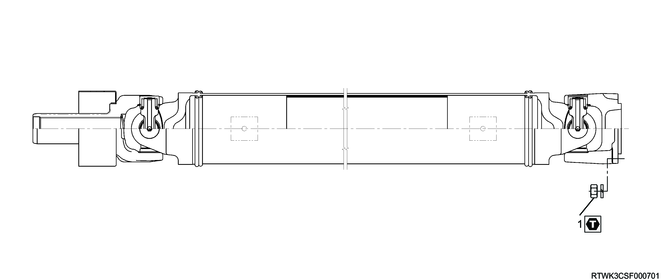

Rear propeller shaft (One-piece type)
Part name
- Nut
Tightening torque
1: 103 N・m { 10.5 kgf・m / 76 lb・ft }
2. Cross member installation
1. Two-piece type rear propeller shaft
1) Install the cross member to the frame.
Tightening torque: 51 N・m { 5.2 kgf・m / 38 lb・ft }
Legend
- Cross member
3. Rear propeller shaft installation
1. Precautions when installing the rear propeller shaft
Caution
- Take care not to damage the spline yoke oil seal connection surface with other components when installing.
- Completely remove any dust or foreign material from the installation flange section of the flange yoke and final drive.
2. Rear propeller shaft installation (Two-piece type)
1) Install the propeller shaft to vehicle.
Note
- Install according to the alignment marks that were made during installation.
- Install in order starting from the front of the vehicle and moving rearward.
Tightening torque: 103 N・m { 10.5 kgf・m / 76 lb・ft }
2) Install the center bearing to the vehicle.
Tightening torque: 69 N・m { 7.0 kgf・m / 51 lb・ft }
3. Rear propeller shaft installation (One-piece type)
1) Install the propeller shaft to vehicle.
Note
- Install according to the alignment marks that were made during installation.
- Install in order starting from the front of the vehicle and moving rearward.
Tightening torque: 103 N・m { 10.5 kgf・m / 76 lb・ft }
4. Rear propeller shaft grease filling (4WD)
1) Fill the rear propeller shaft with grease from the following locations.
- The 2 universal joint locations
Caution
- Referring to the following, fill with grease regularly.
Refer to "201.General Information 14B.Vehicle Information maintenance schedule".
4. Preliminary and post procedures
1. Post procedures
1) Lower the vehicle.
