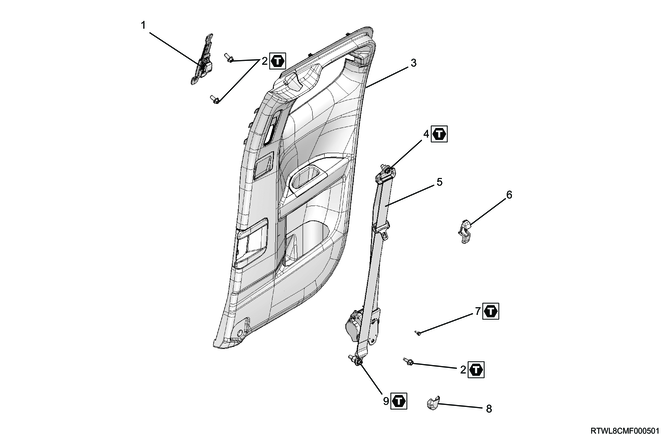

Front tongue side seat belt (without pretensioner) (extend cab) installation

Part name

Tightening torque

2: 46 N・m { 4.7 kgf・m / 34 lb・ft }

4: 46 N・m { 4.7 kgf・m / 34 lb・ft }

7: 8.2 N・m { 0.8 kgf・m / 73 lb・in }

9: 46 N・m { 4.7 kgf・m / 34 lb・ft }

1) Install the front tongue side seat belt to the side access panel.

Tightening torque: 8.2 N・m { 0.8 kgf・m / 73 lb・in } Upper side bolt

Tightening torque: 46 N・m { 4.7 kgf・m / 34 lb・ft } Lower side bolt

Legend

1) Install the door trim pad to the side access panel.

Legend

2) Install the seat belt upper anchor bolt to the side access panel.

Tightening torque: 46 N・m { 4.7 kgf・m / 34 lb・ft }

Legend

3) Install the seat belt lower anchor bolt to the side access panel.

Tightening torque: 46 N・m { 4.7 kgf・m / 34 lb・ft }

Legend

1) Install the door pull case to the side access panel.

Legend
