Supplementary Information

1. Component views

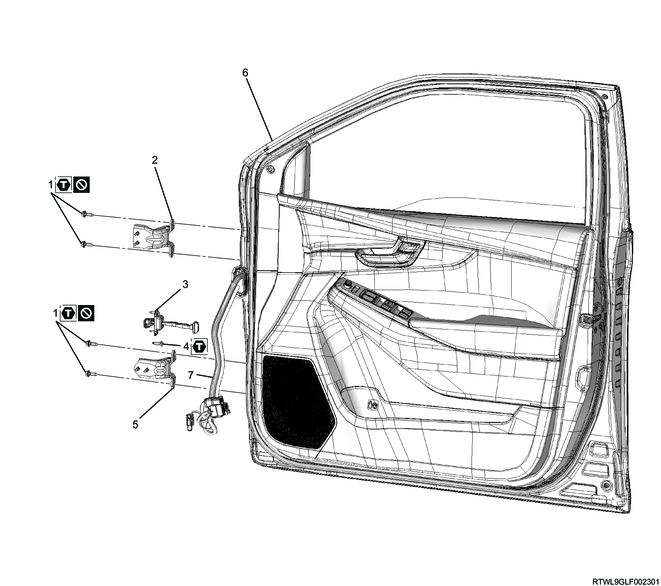

Front door (Models with power windows)

Part name

  1. Bolt
  2. Upper door hinge
  3. Check arm
  4. Torx screw
  5. Lower door hinge
  6. Front door
  7. Door harness

Tightening torque

1: 34 N・m { 3.5 kgf・m / 25 lb・ft }

4: 24 N・m { 2.4 kgf・m / 18 lb・ft }

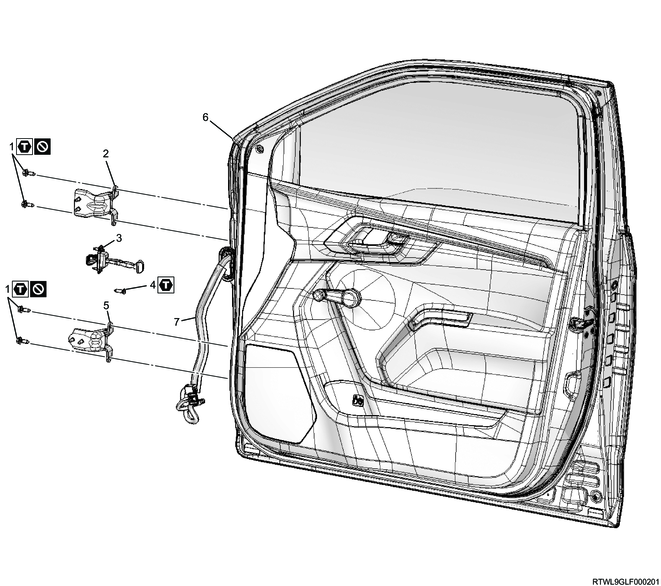

Front door (Models without power windows)

Part name

  1. Bolt
  2. Upper door hinge
  3. Check arm
  4. Torx screw
  5. Lower door hinge
  6. Front door
  7. Door harness

Tightening torque

1: 34 N・m { 3.5 kgf・m / 25 lb・ft }

4: 24 N・m { 2.4 kgf・m / 18 lb・ft }

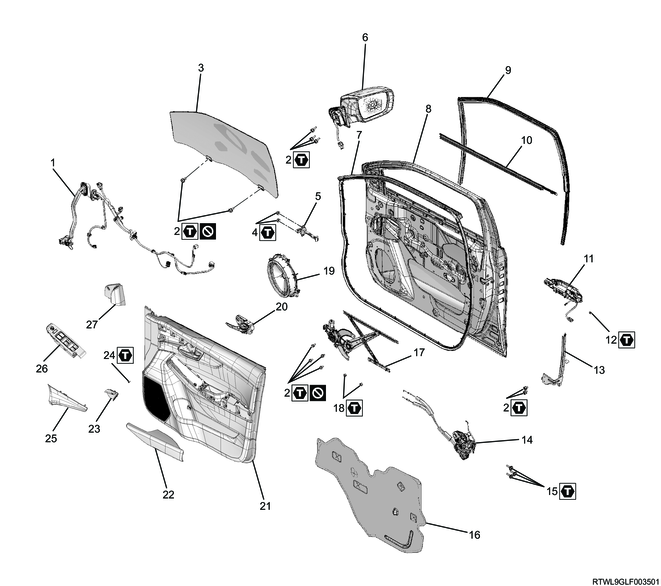

Front door (Models with power windows)

Part name

  1. Door harness
  2. Bolt
  3. Front door glass
  4. Nut
  5. Check arm
  6. Outside rearview mirror
  7. Weather strip
  8. Front door panel
  9. Glass-run
  10. Outer waist seal
  11. Outside handle
  12. Torx screw
  13. Glass-run rear channel
  14. Door lock
  15. Torx screw
  16. Waterproof sheet
  17. Window regulator
  18. Nut
  19. Speaker
  20. Inside lever
  21. Front door trim pad
  22. Armrest
  23. Cover
  24. Screw
  25. Garnish
  26. Power window switch
  27. Door mirror cover

Tightening torque

2: 9.0 N・m { 0.9 kgf・m / 80 lb・in }

4: 7.0 N・m { 0.7 kgf・m / 62 lb・in }

12: 6.0 N・m { 0.6 kgf・m / 53 lb・in }

15: 7.0 N・m { 0.7 kgf・m / 62 lb・in }

18: 9.0 N・m { 0.9 kgf・m / 80 lb・in }

24: 2.0 N・m { 0.20 kgf・m / 17.7 lb・in }

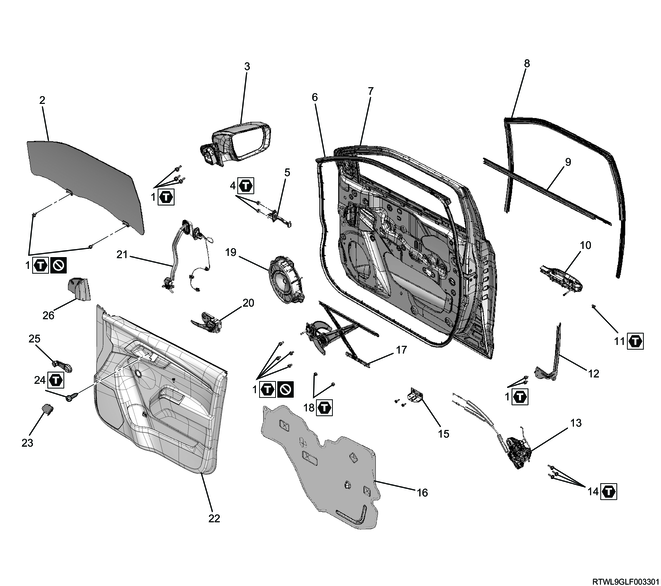

Front door (Models without power windows)

Part name

  1. Bolt
  2. Front door glass
  3. Outside rearview mirror
  4. Nut
  5. Check arm
  6. Weather strip
  7. Front door panel
  8. Glass-run
  9. Outer waist seal
  10. Outside handle
  11. Torx screw
  12. Glass-run rear channel
  13. Door lock
  14. Torx screw
  15. Bracket
  16. Waterproof sheet
  17. Window regulator
  18. Nut
  19. Speaker
  20. Inside lever
  21. Door harness
  22. Front door trim pad
  23. Cover
  24. Screw
  25. Window regulator handle
  26. Door mirror cover

Tightening torque

1: 9.0 N・m { 0.9 kgf・m / 80 lb・in }

4: 7.0 N・m { 0.7 kgf・m / 62 lb・in }

11: 6.0 N・m { 0.6 kgf・m / 53 lb・in }

14: 7.0 N・m { 0.7 kgf・m / 62 lb・in }

18: 9.0 N・m { 0.9 kgf・m / 80 lb・in }

24: 2.0 N・m { 0.2 kgf・m / 18 lb・in }

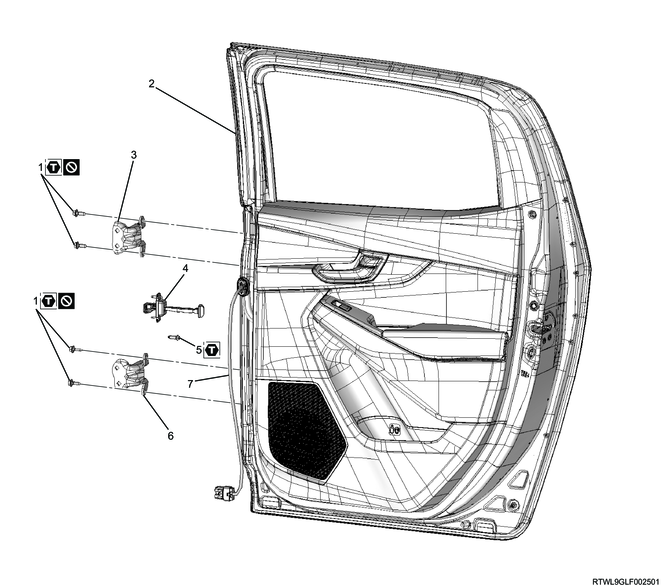

Rear door

Part name

  1. Bolt
  2. Rear door
  3. Upper door hinge
  4. Check arm
  5. Torx screw
  6. Lower door hinge
  7. Door harness

Tightening torque

1: 34 N・m { 3.5 kgf・m / 25 lb・ft }

5: 24 N・m { 2.4 kgf・m / 18 lb・ft }

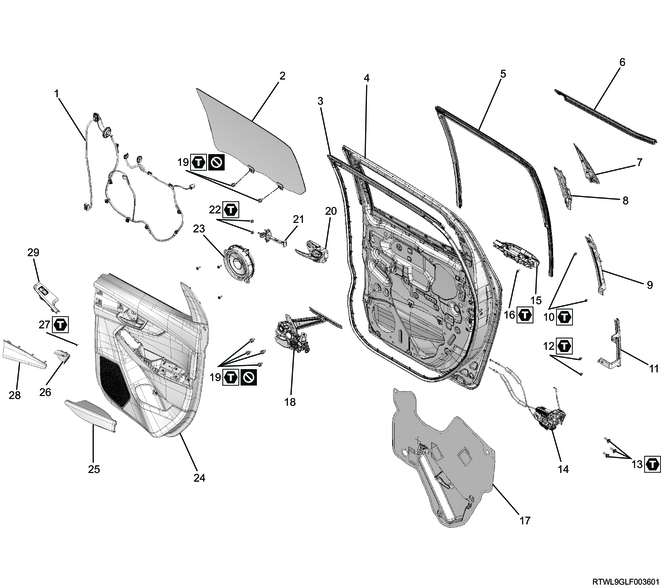

Rear door

Part name

  1. Door harness
  2. Rear door glass
  3. Weather strip
  4. Rear door panel
  5. Glass-run
  6. Outer waist seal
  7. Rear door garnish
  8. Insulator upper cover
  9. Upper glass-run rear channel
  10. Bolt
  11. Lower glass-run rear channel
  12. Bolt
  13. Torx screw
  14. Rear door lock
  15. Outside handle
  16. Torx screw
  17. Waterproof sheet
  18. Rear door window regulator
  19. Bolt
  20. Inside lever
  21. Check arm
  22. Nut
  23. Speaker
  24. Rear door trim pad
  25. Armrest
  26. Cover
  27. Screw
  28. Garnish
  29. Power window switch

Tightening torque

10: 7.0 N・m { 0.7 kgf・m / 62 lb・in }

12: 7.0 N・m { 0.7 kgf・m / 62 lb・in }

13: 7.0 N・m { 0.7 kgf・m / 62 lb・in }

16: 6.0 N・m { 0.6 kgf・m / 53 lb・in }

19: 9.0 N・m { 0.9 kgf・m / 80 lb・in }

22: 7.0 N・m { 0.7 kgf・m / 62 lb・in }

27: 2.0 N・m { 0.2 kgf・m / 18 lb・in }

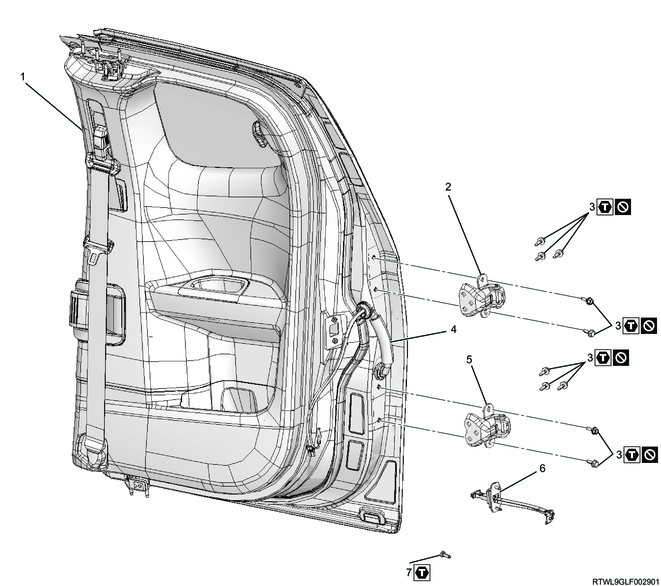

Side access panel

Part name

  1. Side access panel
  2. Upper hinge
  3. Bolt
  4. Door harness
  5. Lower hinge
  6. Check arm
  7. Screw

Tightening torque

3: 34 N・m { 3.5 kgf・m / 25 lb・ft }

7: 24 N・m { 2.4 kgf・m / 18 lb・ft }

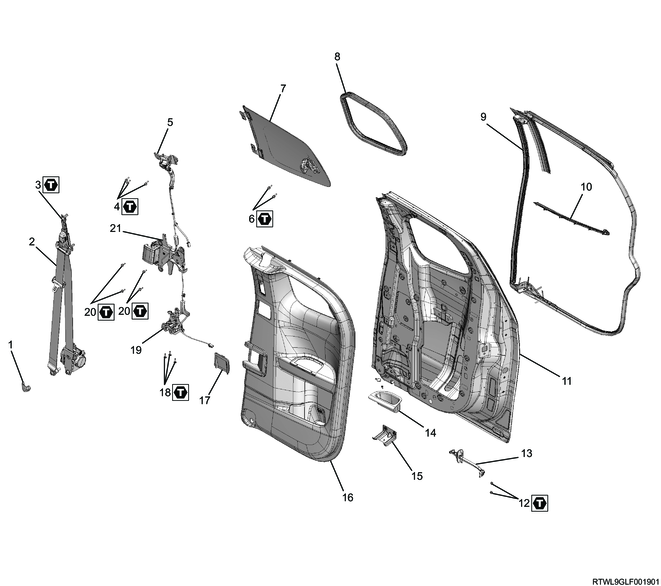

Side access panel

Part name

  1. Seat belt lower anchor cover
  2. Front tongue side seat belt
  3. Bolt
  4. Bolt
  5. Door lock (Upper)
  6. Bolt
  7. Quarter window glass
  8. Quarter window glass weather strip
  9. Weather strip
  10. Window molding
  11. Side access panel
  12. Nut
  13. Check arm
  14. Door pull case
  15. Bracket
  16. Door trim pad
  17. Door trim cover
  18. Torx screw
  19. Door lock (Lower)
  20. Bolt
  21. Inside handle

Tightening torque

3: 46 N・m { 4.7 kgf・m / 34 lb・ft }

4: 11 N・m { 1.1 kgf・m / 96 lb・in }

6: 8.9 N・m { 0.9 kgf・m / 79 lb・in }

12: 7.0 N・m { 0.7 kgf・m / 62 lb・in }

18: 7.0 N・m { 0.7 kgf・m / 62 lb・in }

20: 11 N・m { 1.1 kgf・m / 96 lb・in }

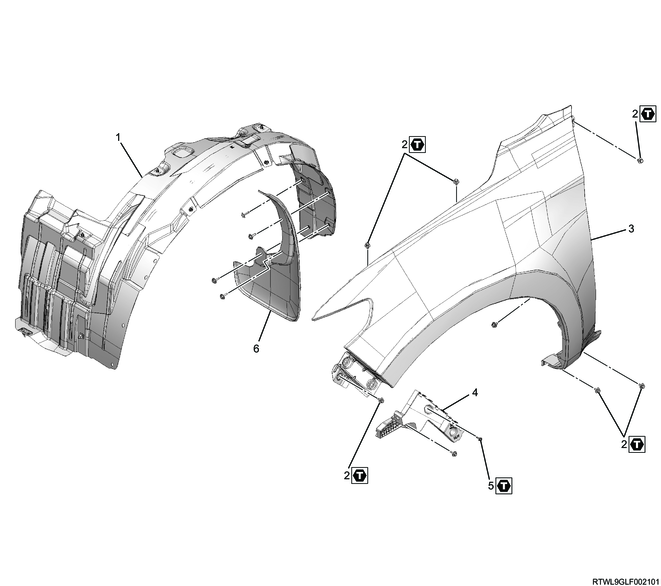

Front fender panel

Part name

  1. Inner liner
  2. Bolt
  3. Front fender
  4. Bumper side retainer
  5. Screw
  6. Mudguard

Tightening torque

2: 7.0 N・m { 0.7 kgf・m / 62 lb・in }

5: 1.7 N・m { 0.17 kgf・m / 15.0 lb・in }

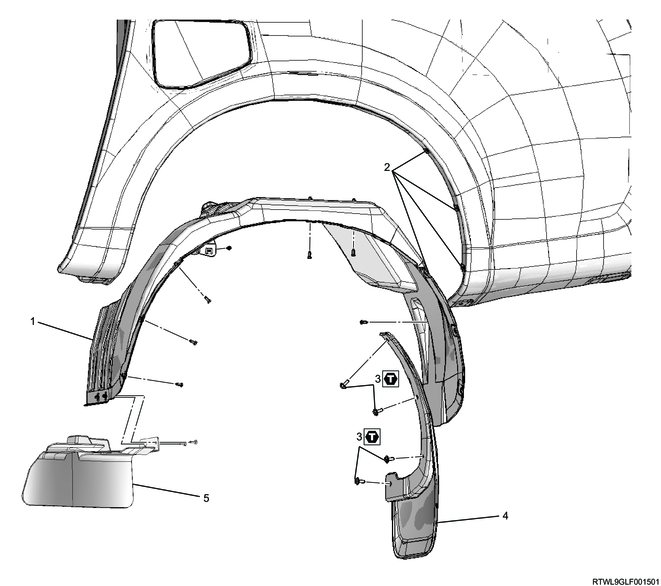

Rear mudguard

Part name

  1. Inner liner
  2. J-type nut
  3. Bolt
  4. Rear mudguard
  5. front flap

Tightening torque

3: 3.0 N・m { 0.3 kgf・m / 27 lb・in }

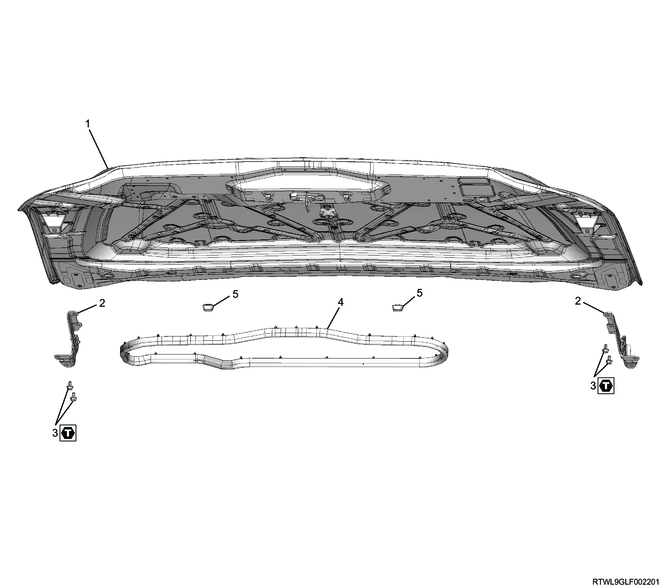

Engine hood

Part name

  1. Engine hood
  2. Hood hinge
  3. Bolt
  4. Engine hood front seal
  5. Stopper rubber

Tightening torque

3: 6.5 N・m { 0.7 kgf・m / 58 lb・in }
