Primary specifications of frame, frame accessories

1. Frame dimension

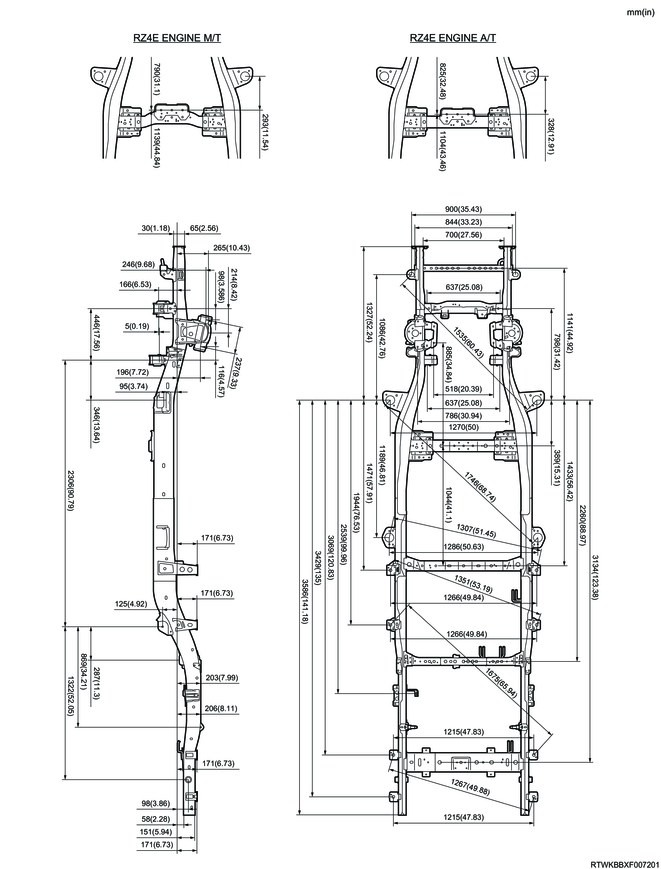

2WD (Except high ride suspension specifications) (Standard cab)

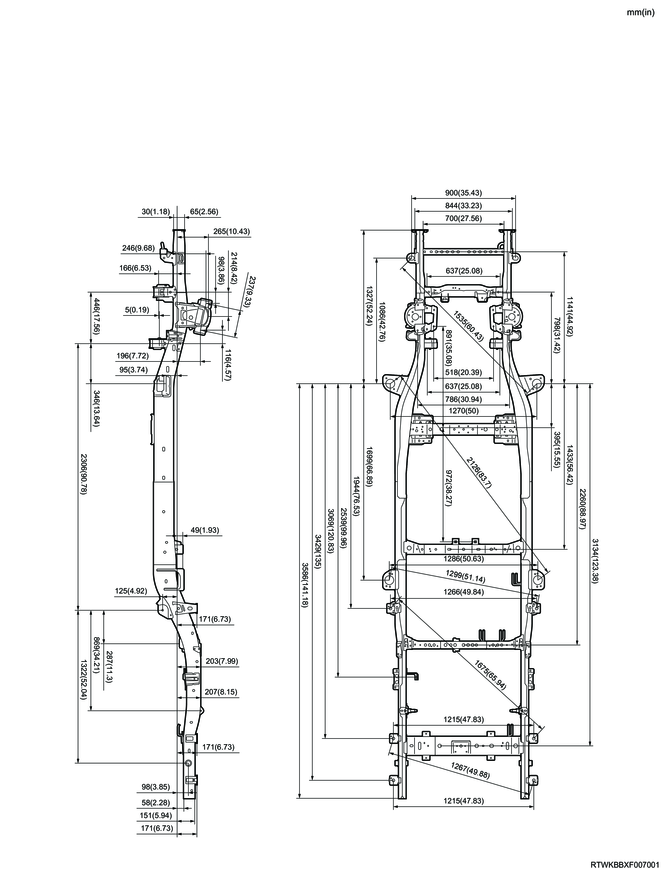

2WD (Except high ride suspension specifications) (Crew cab)

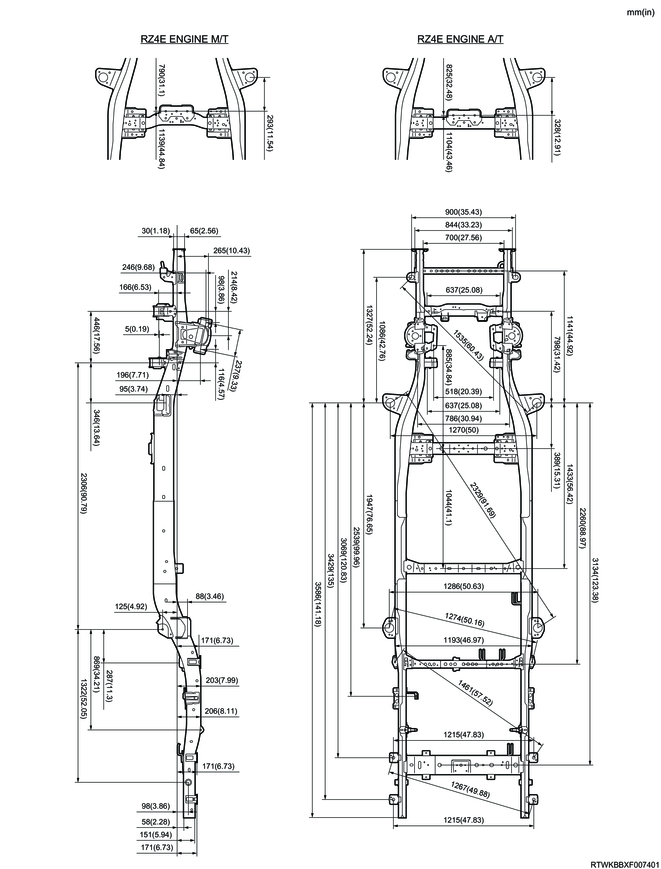

2WD (High ride suspension specifications) (Standard cab)

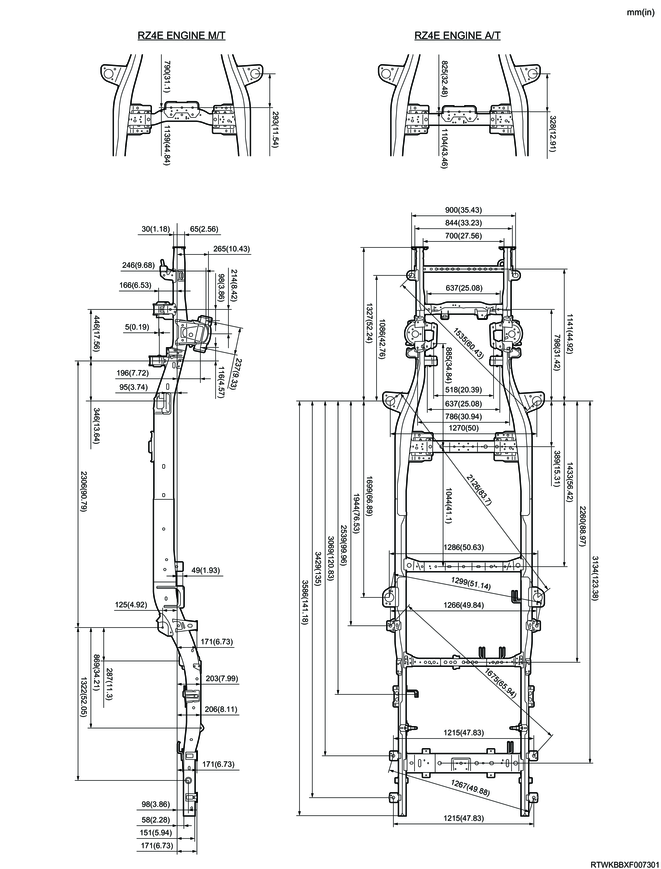

2WD (High ride suspension specifications) (Extended cab)

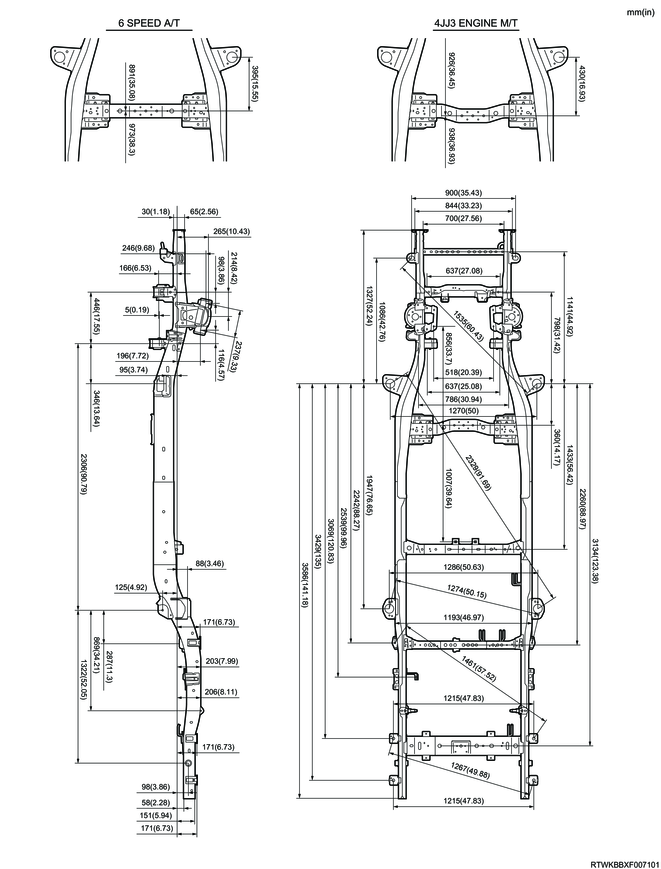

2WD (High ride suspension specifications) (Crew cab)

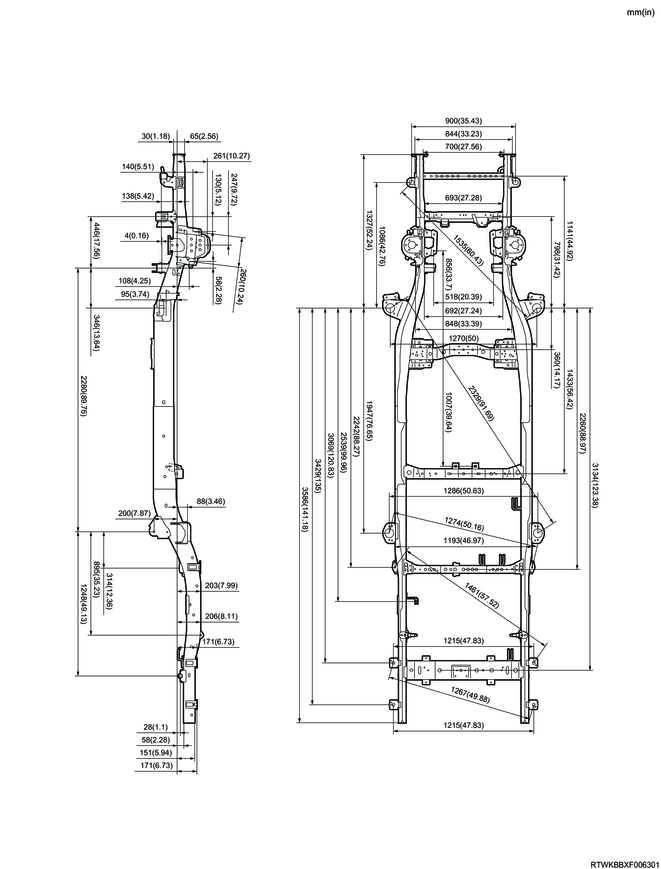

4WD (Standard cab)

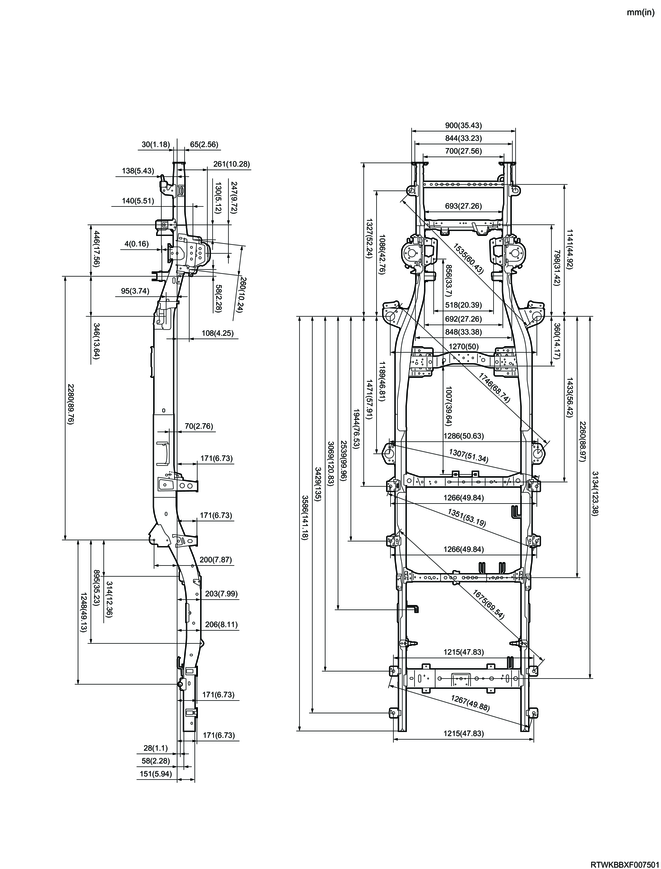

4WD (Extended cab)

4WD (Crew cab)
