FRP regulator removal (RZ4E-TC)

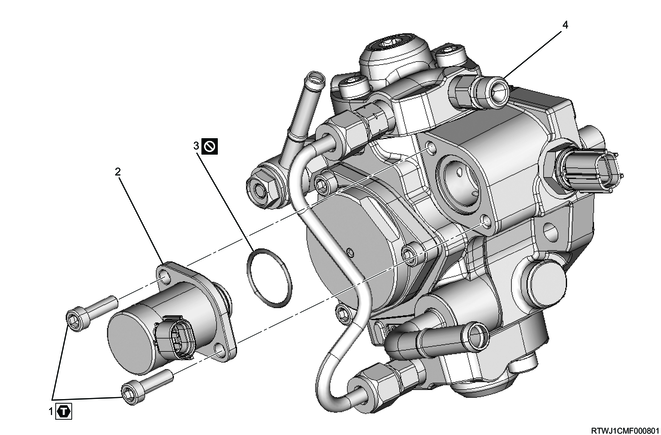

1. Component views

FRP regulator

Part name

  1. Bolt
  2. FRP regulator
  3. O-ring
  4. Fuel supply pump

Tightening torque

1: 9.0 N・m { 0.9 kgf・m / 80 lb・in }

2. Inlet cover removal

Refer to "1.Engine 1B.Mechanical(RZ4E-TC) inlet cover removal".

3. FRP regulator removal

1) Disconnect the connector from the FRP regulator.

Caution

  • Do not damage the connector by applying excessive force.

Legend

  1. FRP regulator
  2. Fuel temperature sensor

2) Remove the FRP regulator from the fuel supply pump.

3) Remove the O-ring from the fuel supply pump.

Legend

  1. O-ring
