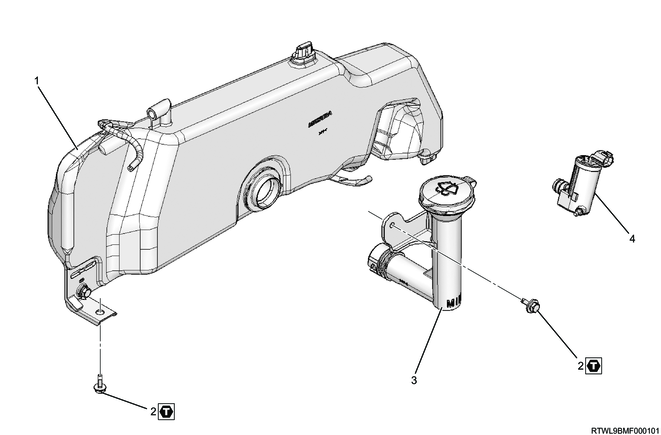

1. Component views
Washer
Part name
- Washer tank
- Bolt
- Tank joint
- Washer motor
Tightening torque
2: 5.9 N・m { 0.6 kgf・m / 52 lb・in }
2. Preliminary and post procedures
1. Preliminary procedures
1) Open the engine hood.
2) Disconnect the battery cable from the battery negative terminal.
Caution
- After turning OFF the ignition switch (power mode for models with passive entry and start system), do not disconnect the battery cable within 3 minutes.
- If the battery cable is disconnected within 3 minutes, the vehicle electronic control system may malfunction.
- If the battery cable is disconnected, perform the setting of the front door power window switch with AUTO UP/AUTO DOWN function after connecting the battery negative terminal.
3. Washer motor removal
1) Disconnect the connector from the washer motor.
Legend
- Washer motor
- Washer tank
- Washer motor harness
2) Remove the washer motor from the washer tank.
