Supplementary Information (RZ4E-TC)

1. Component views

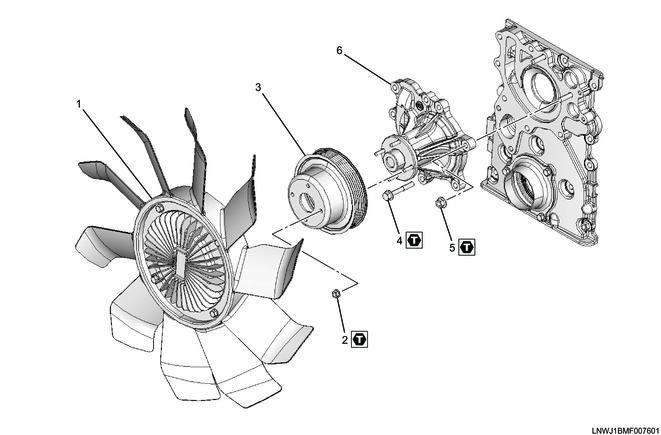

Water pump

Part name

  1. Cooling fan
  2. Nut
  3. Fan pulley
  4. Bolt
  5. Nut
  6. Water pump

Tightening torque

2: 10.0 N・m { 1.0 kgf・m / 89 lb・in }

4: 25 N・m { 2.5 kgf・m / 18 lb・ft }

5: 25 N・m { 2.5 kgf・m / 18 lb・ft }

Cooling fan belt

Part name

  1. Fan pulley
  2. Cooling fan belt
  3. Power steering oil pump pulley
  4. Generator
  5. Bolt
  6. Bolt
  7. A/C compressor
  8. Crankshaft pulley
  9. Auto tensioner pulley
  10. Idle pulley

Tightening torque

5: 110 N・m { 11.2 kgf・m / 81 lb・ft }

6: 110 N・m { 11.2 kgf・m / 81 lb・ft }

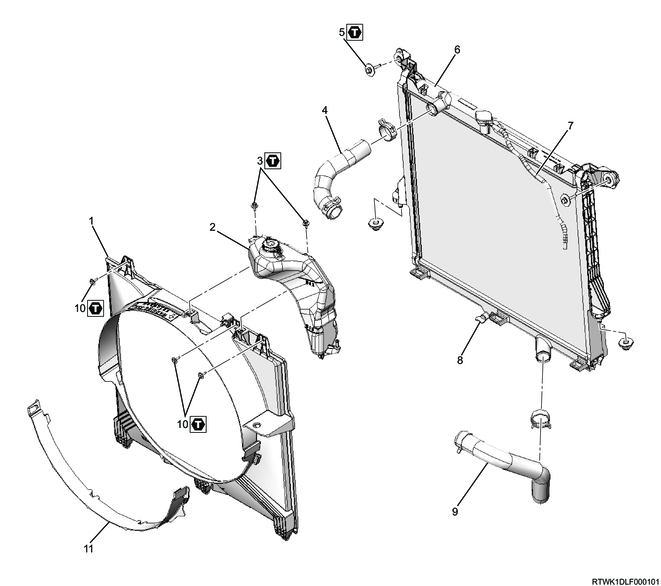

Radiator

Part name

  1. Fan guide
  2. Radiator reserve tank
  3. Bolt
  4. Radiator upper hose
  5. Bolt
  6. Radiator
  7. Radiator reserve tank hose
  8. Drain plug
  9. Radiator lower hose
  10. Bolt
  11. Fan shroud

Tightening torque

3: 8.4 N・m { 0.9 kgf・m / 74 lb・in }

5: 24.7 N・m { 2.5 kgf・m / 18 lb・ft }

10: 6.5 N・m { 0.7 kgf・m / 58 lb・in }
